Увод
This manual provides comprehensive instructions for the Kwikset Casey Interior Privacy Door Handle, model 93002-032, in Polished Chrome. Designed for modern interiors, this lever offers privacy for bedrooms and bathrooms with its keyless turn lock mechanism. It features easy installation and a reversible design for left or right-handed doors.
Image: Kwikset Casey Interior Privacy Door Handle in Polished Chrome, showcasing its sleek design on a white interior door.
Карактеристике производа
- Locking Privacy: Designed for doors requiring privacy, this handle can be locked from the inside with a turn button and unlocked from the outside using the provided emergency release tool. Ideal for bedrooms and bathrooms.
- Easy Install Reversible Lever: Installation is quick and simple, requiring only a screwdriver. The lever is reversible, accommodating both left-handed and right-handed door configurations.
- Fits Standard Doors: Compatible with standard door thicknesses ranging from 1-3/8 inches to 1-3/4 inches. The latch backset is adjustable to either 2-3/8 inches or 2-3/4 inches during installation.
- Сертификовани квалитет: This product meets Grade 3 BHMA certification for security, durability, and finish, ensuring reliable performance and peace of mind.
Шта је у кутији
Each Kwikset Casey Interior Privacy Door Handle package includes the following components:
- Ектериор Левер
- Унутрашња полуга
- Adjustable Latch (with round and square front options or drive-in collar)
- Round Corner Strike
- Сцревс
- Emergency Unlock Tool
- Упутство за инсталацију
- Аллен кључ
Image: All components included in the Kwikset Casey door handle package.
Димензије
Уверите се да ваша врата испуњавају следеће спецификације како би се правилно уклопила:
- Димензије производа: 4.1 инча (дужина) к 2.4 инча (ширина)
- Дубина ставке: 1.375 инча
- Дебљина врата: Fits standard doors 1-3/8 inches to 1-3/4 inches thick
- Latch Backset: Adjustable to either 2-3/8 inches or 2-3/4 inches
Image: Detailed dimensions and adjustable latch backset options for the Kwikset Casey door handle.
Инсталација
The Kwikset Casey Privacy Door Handle is designed for easy, do-it-yourself installation. Only a screwdriver is required for most standard door preparations. The lever is reversible, allowing installation on both left-handed and right-handed doors. The adjustable latch backset can be set to either 2-3/8 inches or 2-3/4 inches during installation to fit standard door thicknesses of 1-3/8 inches to 1-3/4 inches. Refer to the included installation guide for step-by-step instructions.
Image: Illustration of the easy installation process using a screwdriver.

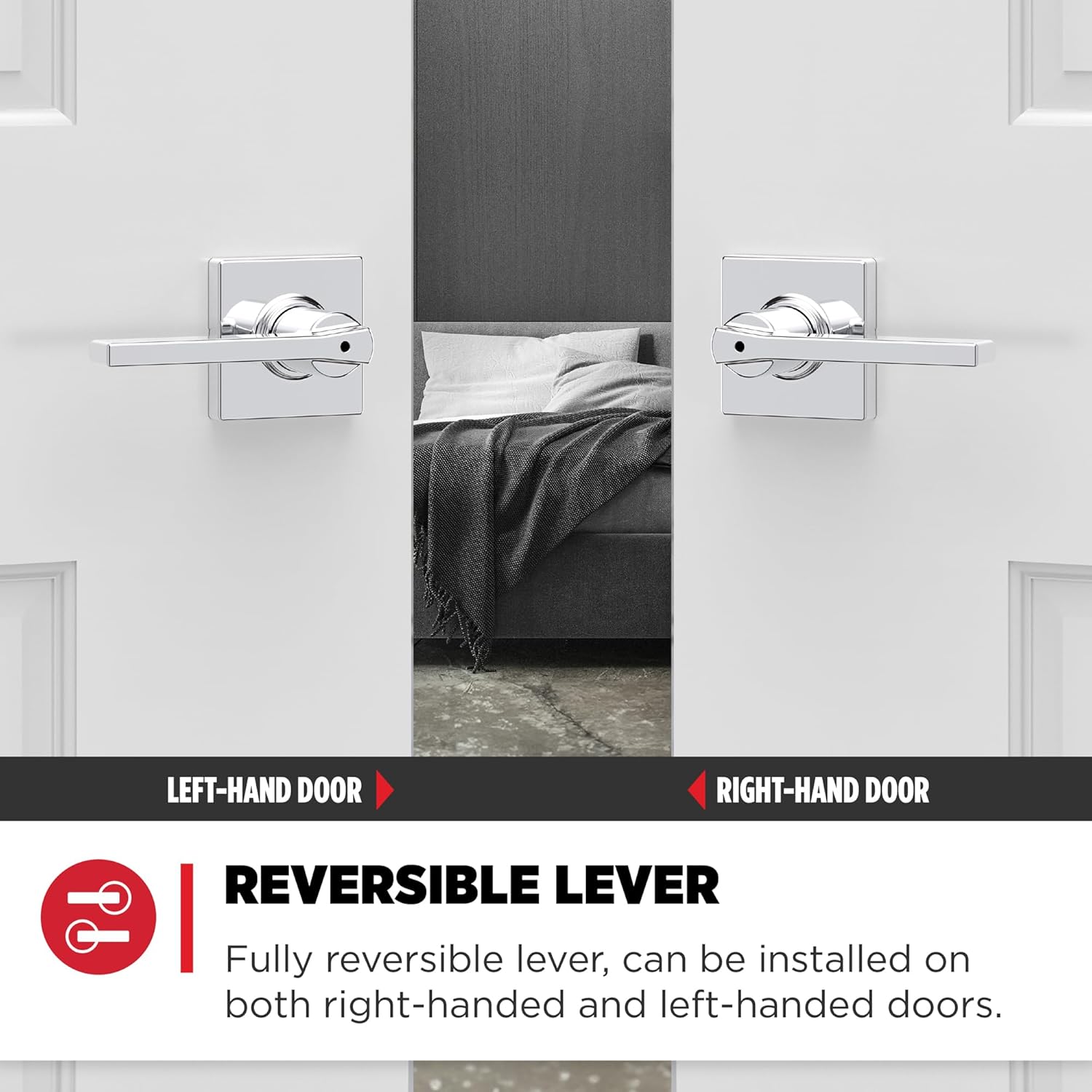

Image: The reversible lever design allows for installation on both left-hand and right-hand doors.
Операција
This privacy door handle features an interior turn button for locking. To lock the door from the inside, simply turn the button. The door can be unlocked from the outside using the provided emergency release tool, which is inserted into the small hole on the exterior side of the lever. This feature is ideal for bedrooms and bathrooms, providing privacy while allowing emergency access.

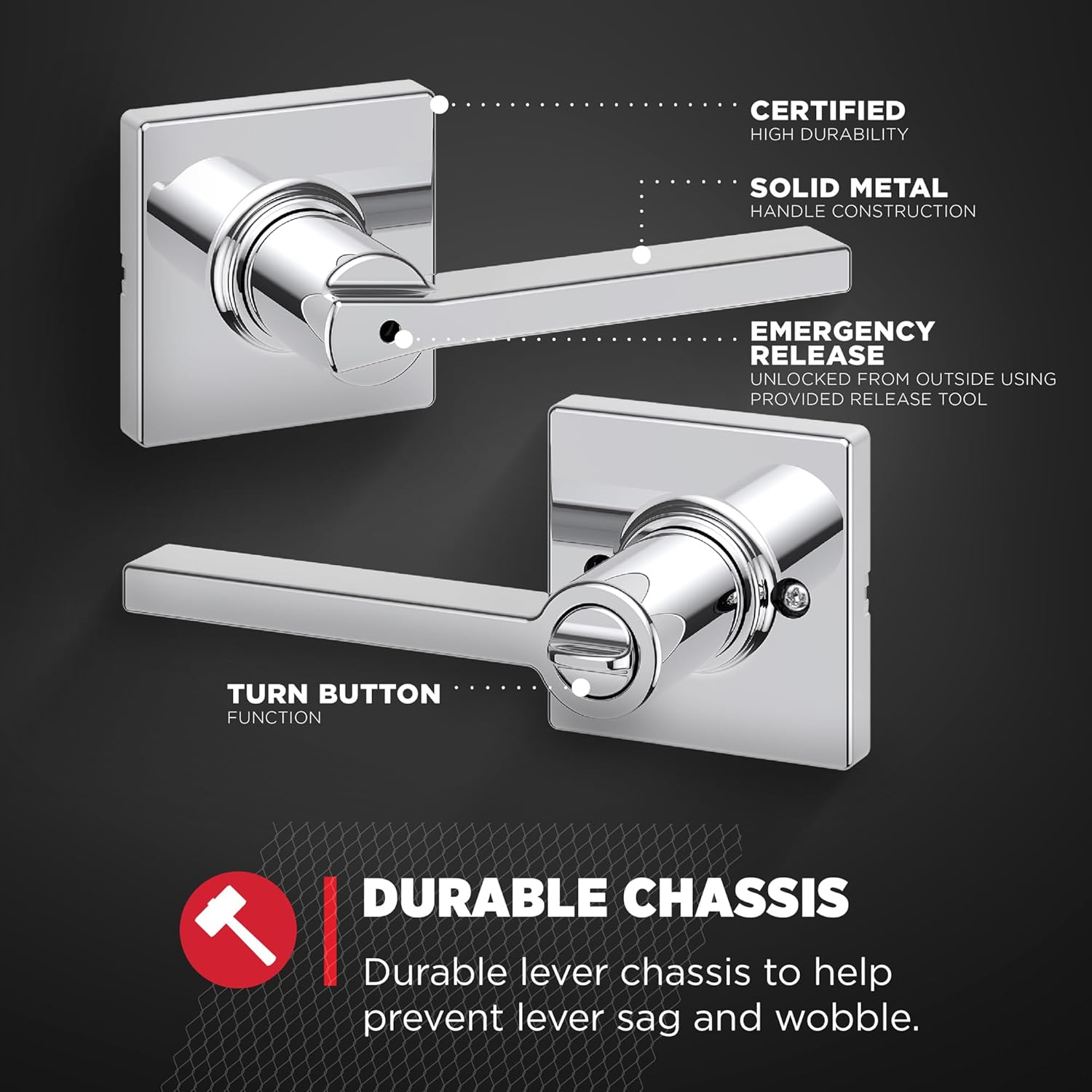

Image: The interior turn button for locking and the exterior emergency release mechanism.
Одржавање
To maintain the finish and functionality of your Kwikset Casey door handle, clean it regularly with a soft, damp cloth. Avoid using abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish. Ensure all screws remain tight for optimal performance.
Решавање проблема
If you encounter issues with your Kwikset Casey door handle, first verify that all components are correctly installed and securely fastened. Ensure the latch is properly aligned with the strike plate. If the lever feels loose or wobbly, check and tighten the mounting screws. For persistent issues, refer to the detailed installation guide or contact Kwikset customer support.
Спецификације
| Атрибут | Валуе |
|---|---|
| Бранд | Квиксет |
| Број модела | 93002-032 |
| Материјал | Цинк |
| Боја | Полирани хром |
| Стиле | Приватност |
| Димензије производа | 4.1 cm D x 2.4 cm Š |
| Дубина ставке | 1.375 инча |
| Тежина артикла | 1.5 фунти |
| Оријентација руке | Амбидектроус |
| Тип закључавања | Key Lock (Emergency Release) |
| Посебна карактеристика | Лако се инсталира |
| УПЦ | 883351809016 |
Гаранција и подршка
The Kwikset Casey Interior Privacy Door Handle is backed by a lifetime mechanical and finish warranty. For detailed warranty information or customer support, please refer to the official Kwikset warranty documentation or visit the Kwikset webсајту.
