Увод
This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Vabiooth Constant Temperature Lab Monocular Compound Microscope. Please read this manual thoroughly before using the microscope to ensure proper function and longevity of the device.
Карактеристике производа
- Увећање: 40X-2500X magnification with wide-field 10X/25X glass eyepieces and 4X/10X/40X/100X achromatic objective lenses.
- 7-инчни ЛЦД екран: Integrated 7-inch LCD display and 5MP electronic eyepiece for direct viewing and sharing, reducing neck strain with its ergonomic 30-degree tilt.

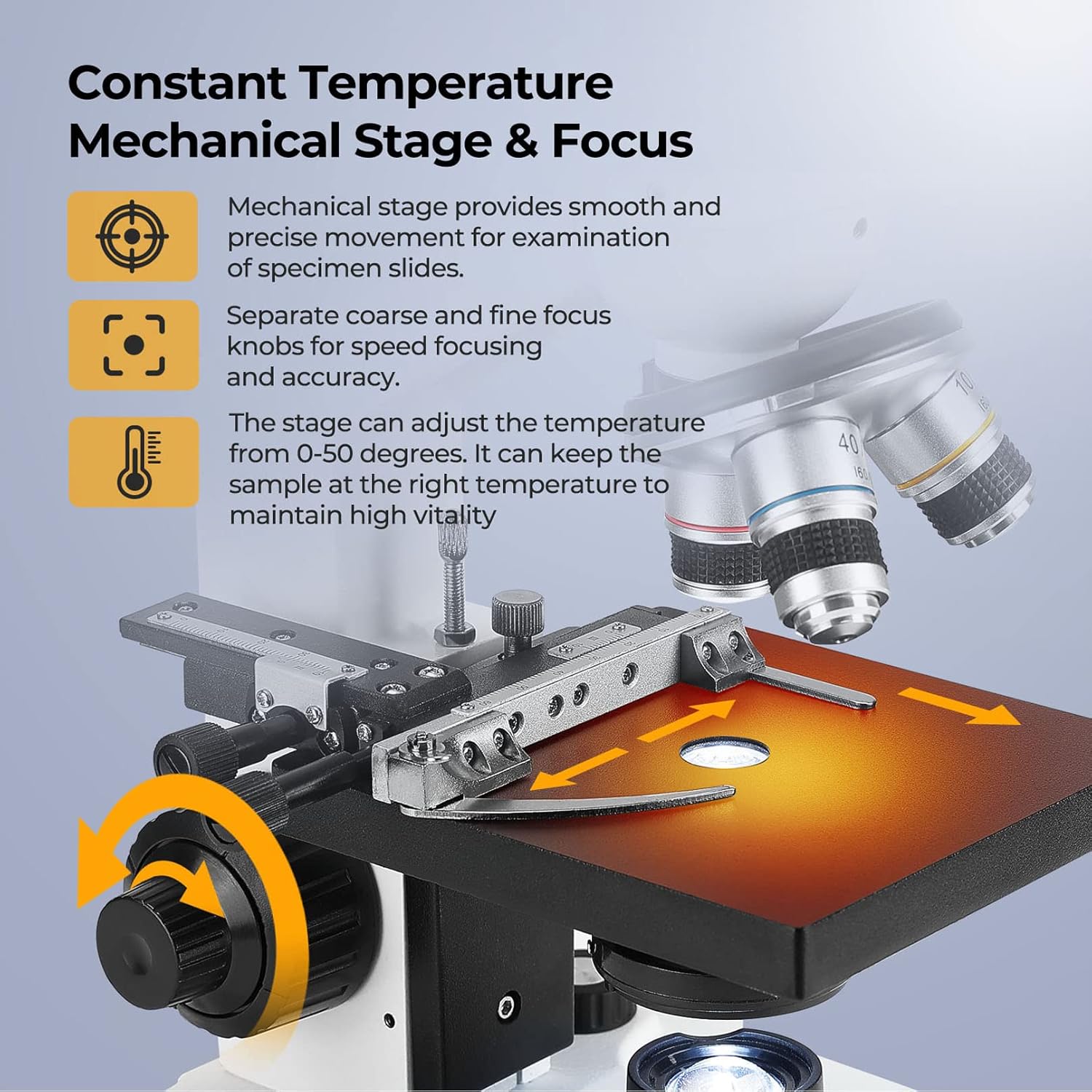

- Constant Temperature Mechanical Stage: Features an adjustable thermostat mechanical stage (0-50°C) to maintain optimal sample vitality, ideal for artificial breeding and insemination research. Includes 1.0mm stage divisions for precise slide manipulation.
- Фокусирање: Separate coarse and fine focus knobs for speed and accuracy.
- Осветљење: Variable LED intensity transmitted illumination with a 1.25 NA Abbe condenser and iris diaphragm for clear examination and light control.
- Преносивост: Comes with a durable aluminum carry case for protection and easy transport.
- Снимање фотографија и видеа: Supports still photo and video capture with a video capture card (sold separately).
Подешавање и инсталација
Follow these steps to set up your Vabiooth microscope:
- Распакивање: Carefully remove all components from the aluminum carry case.
- Attach LCD Screen: Securely attach the 7-inch LCD screen to the top of the microscope head. Connect the necessary cables.
- Install Mechanical Stage: If not pre-installed, attach the mechanical stage to the microscope base. Ensure it is firmly secured.
- Уметните окулари: Place the desired eyepieces (10X or 25X) into the eyepiece tubes.
- Прикључак за напајање: Connect the power adapter to the microscope and plug it into a suitable power outlet (110 Volts).
видео: VB-M001 Vabiooth Dual-View Lab Compound Monocular Microscope. This video demonstrates the assembly and key features of the microscope.
видео: Vabiooth Monocular Microscope. A general overview of the microscope's components and basic setup.
Упутство за употребу
- Укључено: Укључите микроскоп помоћу прекидача за напајање.
- Место узорка: Secure your specimen slide on the mechanical stagе користећи сtagе цлипс.
- Подесите увећање: Rotate the revolving nosepiece to select the desired objective lens (4X, 10X, 40X, or 100X).
- Фокусирање: Use the coarse adjustment knob for large focus changes and the fine adjustment knob for precise focusing.
- Подесите осветљење: Use the dimming handwheel to adjust the brightness of the LED light source. Adjust the Abbe condenser and iris diaphragm for optimal contrast and resolution.
- Константна температура Сtage: Use the control buttons on the base to set the desired temperature for the mechanical stage (0-50°C). The current temperature will be displayed digitally.
- Ротирајућа глава: The 360-degree rotatable head allows for flexible viewинг углова.
Напредне операције
- Снимање фотографија и видео записа: To capture still photos or videos, connect a USB 2.0 Audio Video Capture Card and RCA cables (male to male) to your microscope and PC. Install the provided software on your PC. The video below demonstrates the connection and software usage.
- Setting Screen Language: To change the language on the 7-inch LCD screen, turn on the monitor, click the 'M' button 6 times, then click the '>' button to cycle through and select your preferred language.
- Adjusting Rotating Head: The microscope head can be rotated 360 degrees. Loosen the securing screw, adjust the head to the desired angle, and then tighten the screw to fix its position.
видео: How to take still photos and videos? This video guides you through connecting the microscope to a PC for image and video capture.
видео: How to set the language of the screen? Learn how to navigate the monitor's menu to select your preferred language.
видео: How to adjust the 360-degree rotating head? This video demonstrates the process of adjusting the microscope's rotating head.
Одржавање
- Чишћење сочива: Use only specialized lens cleaning paper and solution. Gently wipe objective lenses and eyepieces.
- Чишћење тела: Wipe the microscope body with a soft, dry cloth. Avoid using harsh chemicals.
- Складиштење: When not in use, store the microscope in its aluminum carry case in a dry, dust-free environment. Use a dust cover to protect it from dust and debris.
- Уље за потапање: For the 100X objective, use a small drop of immersion oil. After use, clean the oil from the lens immediately.
Решавање проблема
- Нема слике на екрану: Check all cable connections, especially the AV cable to the monitor. Ensure the microscope is powered on.
- Замућена слика: Adjust the coarse and fine focus knobs. Ensure the objective lens is clean and correctly positioned. If using the 100X objective, verify immersion oil application.
- Image Misalignment (Eyepiece vs. Screen): Due to movement during transportation, the angular position might shift. Loosen the screw on the eyepiece tube, adjust the image angle on the screen to match the eyepiece view, then tighten the screw.
видео: Angle misalignment solution of eyepiece view и екран view. This video demonstrates how to correct image misalignment between the eyepiece and the screen.
Спецификације
| Феатуре | Спецификација |
|---|---|
| Бранд | Вабиоотх |
| Број модела | VB-M001-C-US |
| Максимално увећање | 2500 к |
| Окулари | Wide-Field 10X/25X |
| Објективна сочива | 4X, 10X, 40X, 100X (Achromatic) |
| ЛЦД екран | 7" LCD Screen, 5MP Electronic Eyepiece |
| Stagе Тип | Adjustable Thermostat Mechanical Stage |
| Stagе Температурни опсег | 0-50°Ц |
| Тип извора светлости | ЛЕД |
| Кондензатор | 1.25 НА Аббеов кондензатор са ирисном дијафрагмом |
| Реал Англе оф View | 30 степени |
| Материјал | Алуминијум |
| Волtage | 110 Волтс |
| УПЦ | 617737842768 |
Гаранција и подршка
The manufacturer's warranty period is 18 месеци од дана куповине.
Корисничка подршка
For any questions or support, please contact the Vabiooth Customer Care Center:
- Email & WhatsApp: Вабиоотх@оутлоок.цом
- Телефон: +86 17306342950
- Operating Hours (EST): Monday through Friday, 9:00-11:00 or 20:00-24:00 (excluding public holidays).
- When contacting us, please provide your order number.
