1. Увод
This manual provides essential information for the safe and efficient operation, maintenance, and care of your Mountfield MTF 84M Riding Lawn Mower. Please read this manual thoroughly before assembly, operation, or maintenance to ensure proper use and to prevent injury or damage.
The Mountfield MTF 84M is a powerful and efficient riding lawn mower designed for lawns up to 3,000 m². It features a STIGA ST 350 single-cylinder engine, an 84 cm cutting deck with 7 height adjustments, and a 200-liter grass collector.

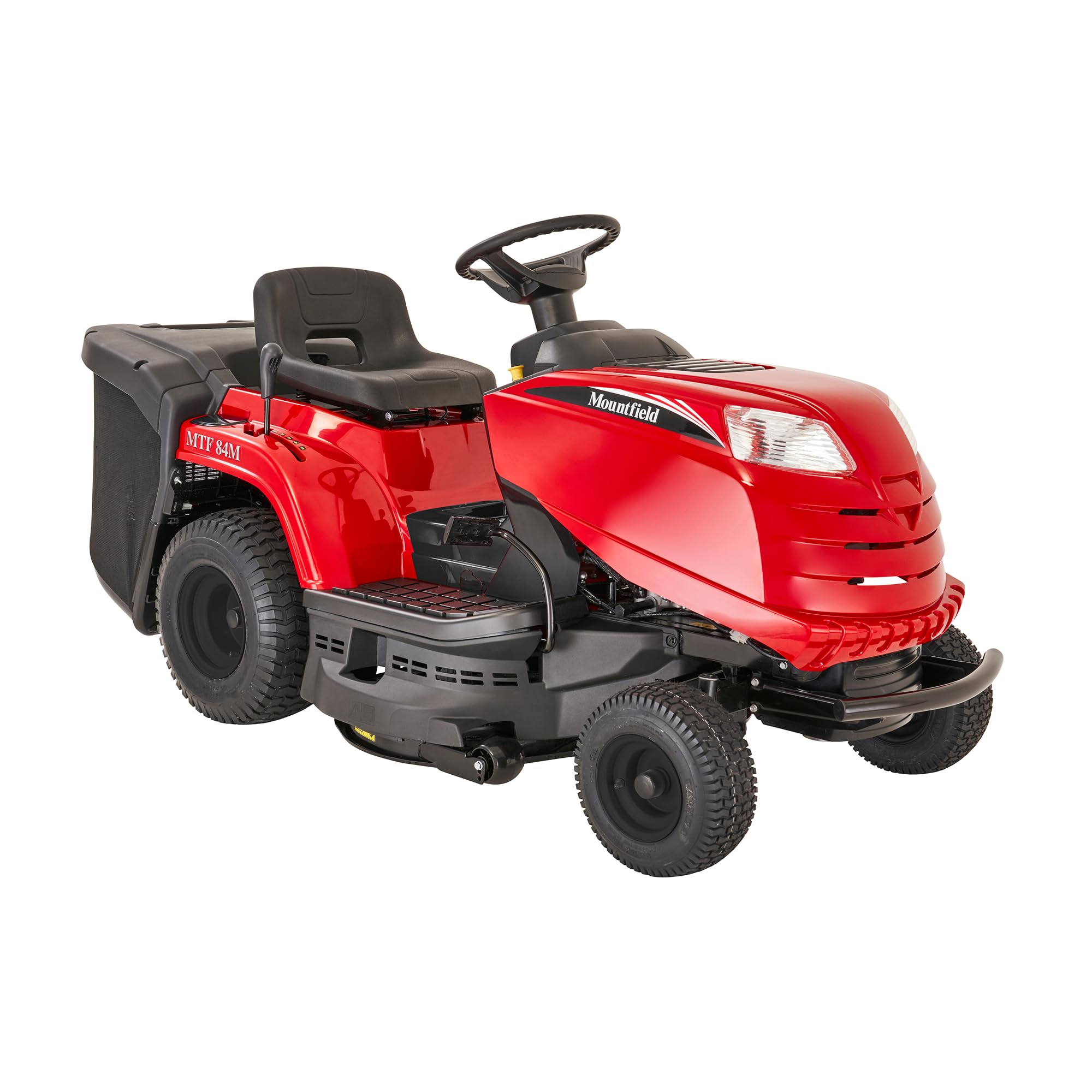

Figure 1: Mountfield MTF 84M Riding Lawn Mower.
2. Подешавање и монтажа
Your Mountfield MTF 84M riding mower requires some assembly before its first use. Follow these steps carefully.
2.1. Распакивање
Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present. Keep packaging materials until assembly is complete.
2.2. Склоп волана
- Mount the steering wheel onto the shaft protruding from the dashboard.
- Secure the steering wheel using the provided pin.
2.3. Баттери Цоннецтион
Important: Connect the battery before initial use for electric starting.
- Locate the battery compartment, typically under the seat or hood.
- Connect the positive (+) terminal (red cable) and then the negative (-) terminal (black cable) to the battery posts.
- Уверите се да су спојеви чврсти.
2.4. Инсталација седишта
- Adjust the seat by sliding it along the slots to your desired position.
- Once the correct position is found, tighten the four screws to secure the seat.
2.5. Grass Collector Assembly
Important: The grass collector must be correctly installed for the mower to operate due to a safety interlock switch.
- Assemble the grass collector components as per the diagrams in the printed manual.
- Attach the assembled collector to the rear of the mower, ensuring it is securely latched.
2.6. Initial Fluid Checks
- резервоар за гориво: Fill with unleaded gasoline (essence sans plomb). Refer to the fuel tank cap for recommended fuel type.
- Резервоар нафте: Check the engine oil level and fill with recommended SAE30 oil if necessary.
Video 1: Assembly and Initial Setup Guide for a similar riding mower model. This video demonstrates the installation of the steering wheel, battery connection, seat adjustment, grass collector attachment, and fluid checks.
3. Упутство за употребу
Familiarize yourself with the controls and operating procedures before starting the mower.
3.1. Контроле прекоview
- Кључ за паљење: Покреће и зауставља мотор.
- Полуга пригушнице: Used for cold starting the engine.
- Blade Engagement Lever: Engages and disengages the cutting blades.
- Transmission Lever: Selects forward (5 speeds) or reverse (1 speed) gears.
- Cutting Height Adjustment Lever: Adjusts the cutting height (7 positions from 25-80 mm).
- Педала кочнице: Engages the brake.
Слика 2: Завршеноview of the Mountfield MTF 84M, highlighting key features and controls.
3.2. Покретање мотора
- Уверите се да је косилица на равној површини и да је паркирна кочница активирана.
- Поставите мењач у неутрални положај.
- Engage the choke (for cold starts).
- Уметните кључ за паљење и окрените га у положај „УКЉУЧЕНО“.
- Притисните педалу кочнице.
- Turn the ignition key to the 'START' position until the engine starts. Release the key once the engine is running.
- Gradually disengage the choke as the engine warms up.
3.3. Mowing
The MTF 84M features an 84 cm cutting width and a 200-liter grass collector, suitable for areas up to 3,000 m².
- Подесите висину кошења: Use the cutting height adjustment lever to select one of the 7 positions (25-80 mm) according to your lawn's condition and desired grass length.
- Engage Blades: Once the engine is running and you are ready to mow, engage the cutting blades using the blade engagement lever.
- Select Gear: Use the manual transmission to select a forward speed. The mower has 5 forward and 1 reverse gear.
- Mow: Drive the mower at a consistent speed, overlapping each pass slightly to ensure an even cut.
- Сакупљање траве: The 200-liter rear collector will gather clippings. Monitor its fill level and empty it when full.
- Малчирање: A mulching plug is included, allowing you to recycle grass clippings back into the lawn as natural fertilizer.
Figure 3: Operator using the Mountfield MTF 84M for efficient lawn mowing.
Figure 4: Close-up of the cutting deck and height adjustment mechanism.

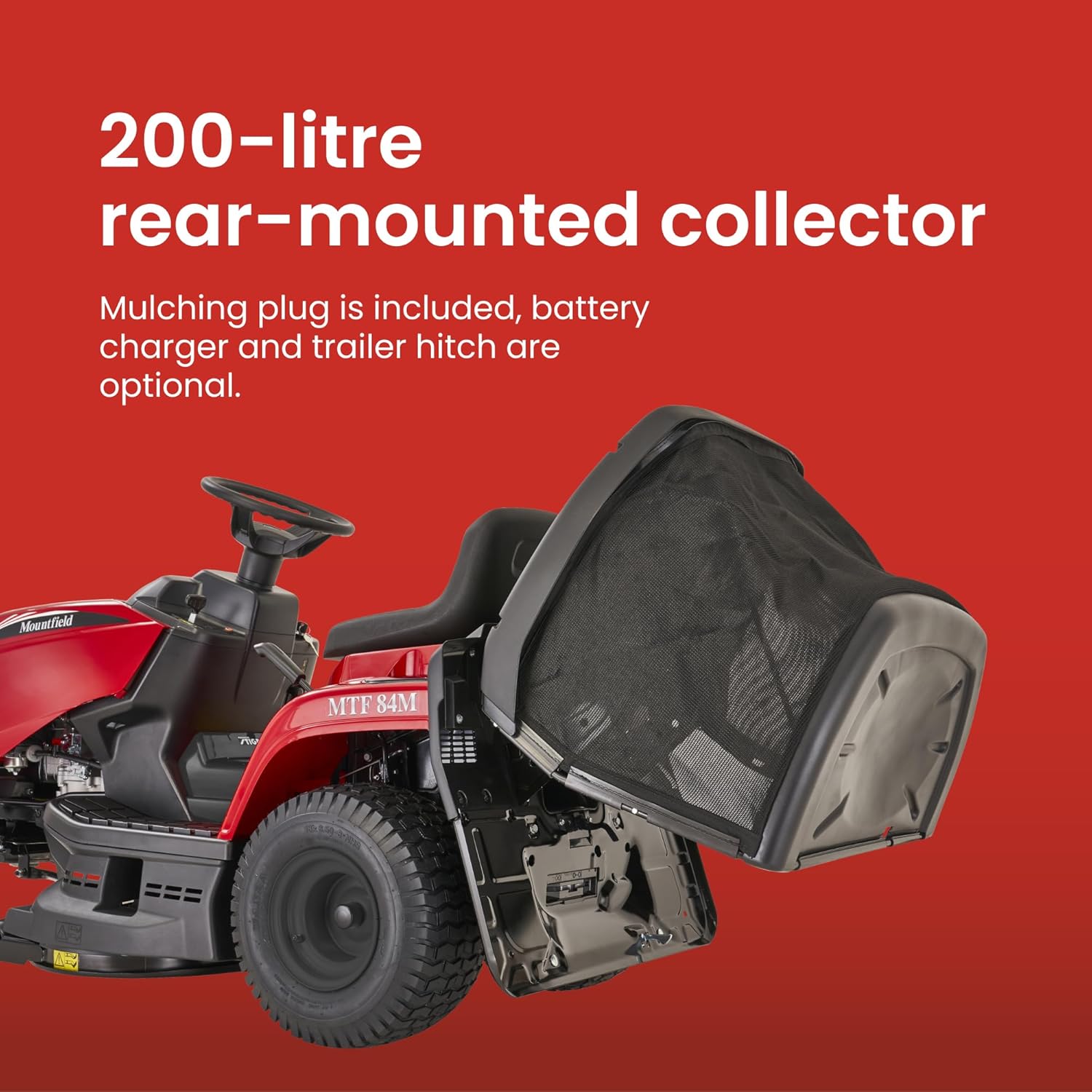

Figure 5: The 200-liter rear-mounted grass collector.
3.4. Заустављање мотора
- Disengage the cutting blades.
- Поставите мењач у неутрални положај.
- Активирајте паркирну кочницу.
- Окрените кључ за паљење у положај „ИСКЉУЧЕНО“.
4. Одржавање
Regular maintenance ensures the longevity and optimal performance of your riding mower.
4.1. Генерално чишћење
After each use, clean the cutting deck and the exterior of the mower to prevent grass buildup and corrosion. Use a hose and brush, avoiding direct water spray on electrical components.
4.2. Нега сечива
Regularly inspect the cutting blades for sharpness and damage. Dull or damaged blades can lead to an uneven cut and strain the engine. Sharpen or replace blades as needed. Always wear protective gloves when handling blades.
4.3. Одржавање мотора
- Замена уља: Change the engine oil according to the schedule in the full owner's manual, typically after the first 5 hours and then every 25-50 hours of operation.
- Ваздушни филтер: Редовно чистите или мењајте ваздушни филтер, посебно у прашњавим условима, како бисте осигурали правилно дисање мотора.
- свећица: Свећицу годишње прегледајте и очистите или замените.
4.4. Складиштење
For long-term storage, especially during winter:
- Темељно очистите косилицу.
- Испразните резервоар за гориво или додајте стабилизатор горива.
- Change the engine oil and replace the oil filter if applicable.
- Remove the battery and store it in a cool, dry place, charging it periodically.
- Store the mower in a dry, protected area.
КСНУМКС. Решавање проблема
This section addresses common issues you might encounter with your Mountfield MTF 84M.
| Проблем | Могући узрок | Решење |
|---|---|---|
| Мотор се неће покренути | No fuel, dead battery, safety interlock engaged, choke not set. | Check fuel level, charge/replace battery, ensure grass collector/seat is correctly installed, apply choke for cold starts. |
| Лоше перформансе сечења | Dull/damaged blades, incorrect cutting height, mowing too fast, wet grass. | Sharpen/replace blades, adjust cutting height, reduce speed, mow when grass is dry. |
| Unusual noises/vibrations | Loose parts, damaged blades, engine issue. | Inspect for loose bolts/nuts, check blades for damage, consult a qualified technician for engine issues. |
| Gearbox not precise / hard to shift | Linkage adjustment, internal wear. | Check and adjust transmission linkage. If issue persists, professional service may be required. |
6. Спецификације
| Феатуре | Спецификација |
|---|---|
| Бранд | СТИГА |
| Број модела | 2T2005403/CAS |
| Мотор | STIGA ST 350, 352 cm³ (Gas-powered) |
| Ширина сечења | 84 центиметара |
| Положаји висине сечења | 7 (25-80 mm) |
| Капацитет сакупљача траве | 200 литара |
| Преношење | Manual (5 Forward, 1 Reverse) |
| Препоручена површина травњака | До 3,000 м² |
| Димензије производа (Д x Ш x В) | 234P x 88d x 110V centimetara |
| Тежина артикла | 176 килограма |
| Материјал | Метал, Пластика |
| Земља порекла | Кина |
7. Гаранција и подршка
Your Mountfield MTF 84M riding lawn mower comes with a manufacturer's warranty and access to spare parts.
- Гаранција произвођача: 2 године.
- Spare Parts Availability (EU): 5 године.
For technical support, warranty claims, or to order spare parts, please contact STIGA France directly or refer to the contact information provided with your purchase documentation. You can also visit the official STIGA store on Amazon.fr за више информација.
