Увод
This manual provides essential instructions for the safe and efficient operation, maintenance, and troubleshooting of your Cecotec Conga 5000 Carpet&Spot Clean XXL Spot Cleaner. Please read this manual thoroughly before first use and keep it for future reference.
The Cecotec Conga 5000 Carpet&Spot Clean XXL is a powerful 3-in-1 spot cleaner designed for carpets and upholstery. It features a 650W motor, dual water tanks for clean and dirty water, and a water spray system for effective stain removal.
Image: The Cecotec Conga 5000 Carpet&Spot Clean XXL Spot Cleaner, a compact and portable cleaning device.
Безбедносна упутства
- Увек проверите јачину напајањаtage одговара налепници са ознакама на уређају.
- Не урањајте уређај, кабл за напајање или утикач у воду или било коју другу течност.
- Држите уређај ван домашаја деце и кућних љубимаца.
- Искључите уређај из електричне утичнице пре чишћења, одржавања или када га не користите.
- Не користите уређај ако је кабл за напајање или утикач оштећен. За поправку контактирајте овлашћено сервисно особље.
- Use only low-foam cleaning solutions specifically designed for spot cleaners. High-foam solutions can damage the appliance.
- Do not use the appliance to vacuum flammable or combustible liquids, or hot ashes.
- Ensure all tanks are properly secured before operating the device.
Компоненте производа
The Cecotec Conga 5000 Carpet&Spot Clean XXL includes the following main components:
- Main Unit with Motor and Dual Tanks
- Clean Water Tank (1.4 L capacity)
- Dirty Water Tank (1.2 L capacity)
- Flexible Suction Hose (1.2 m length)
- Liquid Suction Nozzle with Brush
- Liquid Suction Nozzle with Plastic Brush
- 2-у-1 Алат за четкицу
- Power Cable (4 m length)
Image: Illustration of the separate clean water (1.4 L) and dirty water (1.2 L) tanks.
Сетуп
- Распакујте уређај: Пажљиво уклоните све компоненте из паковања.
- Assemble the Hose and Nozzle: Connect the flexible suction hose to the main unit. Attach the desired liquid suction nozzle (with brush or plastic brush) or the 2-in-1 brush tool to the end of the hose. Ensure connections are secure.
- Напуните резервоар за чисту воду: Remove the clean water tank from the main unit. Fill it with clean water, which can be warm. If using a cleaning solution, add 5 to 10 ml of low-foam liquid soap per tank of water. Do not overfill. Reinsert the clean water tank securely.
- Поставите уређај: Place the spot cleaner on a stable, flat surface near the area to be cleaned.
- Повежите се са напајањем: Укључите кабл за напајање у одговарајућу електричну утичницу.
Image: Demonstrates the process of filling the clean water tank and emptying the dirty water tank.
Операција
The Conga 5000 Carpet&Spot Clean XXL offers a 3-in-1 function: spraying, cleaning, and vacuuming.
- Претходно тестирање: Before cleaning, test the cleaning solution on an inconspicuous area of the fabric or carpet to ensure colorfastness.
- Укључено: Укључите уређај помоћу дугмета за напајање.
- Spray Water/Solution: Press the spray trigger on the nozzle to release water or cleaning solution onto the stained area. The spray system allows for easy adjustment of water flow.
- Очистите површину: Gently scrub the stained area with the brush attachment on the nozzle. For stubborn stains, allow the solution to penetrate for a few minutes.
- Vacuum Liquids and Solids: Move the nozzle slowly over the treated area to vacuum up the dirty water and any loose solids. The powerful suction (11 kPa) will extract moisture and dirt.
- Поновите ако је потребно: For heavily soiled areas, repeat the spray, scrub, and vacuum steps until the stain is removed.
- Cleaning Various Surfaces: The appliance is suitable for carpets, rugs, upholstery, car interiors, and other fabric surfaces. Use the appropriate nozzle for the task.
Image: Visual representation of the 3-in-1 function: spraying, cleaning with a brush, and vacuuming.
Image: A user cleaning a sofa cushion with the Cecotec spot cleaner, demonstrating upholstery cleaning.

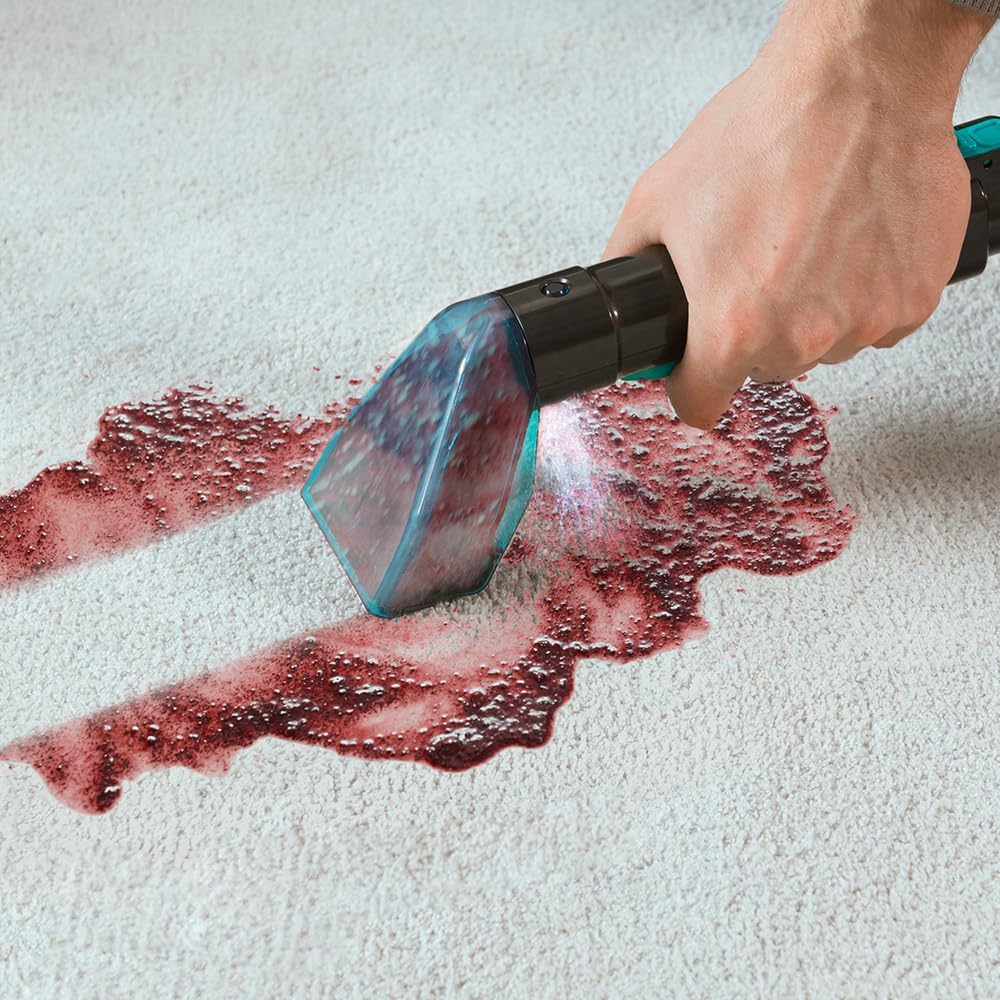

Image: The spot cleaner nozzle actively removing a red liquid stain from a light-colored carpet.
Image: The spot cleaner being used to clean a car seat and a decorative pillow, highlighting its versatility.
Одржавање
- Испразните и очистите резервоар за прљаву воду: After each use, remove the dirty water tank and empty its contents. Rinse the tank thoroughly with clean water and allow it to air dry.
- Чисти резервоар за чисту воду: If using cleaning solution, rinse the clean water tank to prevent residue buildup.
- Очистите млазнице и црево: Detach the nozzles and hose. Rinse them under running water to remove any dirt or debris. Ensure the spray nozzle is clear of blockages.
- Обришите главну јединицу: Користите огласamp cloth to wipe the exterior of the main unit. Do not use abrasive cleaners.
- Складиштење: Store the appliance and its accessories in a dry, cool place. Use the integrated hook for power cable storage.
Image: Illustrates the importance of using low-foam cleaning liquids to prevent damage and ensure proper function.
Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Уређај се не укључује | Нема напајања; Дугме за напајање није притиснуто | Проверите повезаност кабла за напајање; Уверите се да је утичница функционална; Чврсто притисните дугме за напајање. |
| Без воденог прскања | Clean water tank empty; Nozzle clogged; Spray trigger not pressed | Refill clean water tank; Clean nozzle; Press spray trigger. |
| Мала усисна снага | Dirty water tank full; Hose or nozzle clogged; Tank not properly sealed | Empty dirty water tank; Clear any blockages in hose/nozzle; Ensure tanks are securely fitted. |
| Цурење воде | Tanks not properly seated; Damaged seals | Re-seat tanks firmly; Check seals for damage and contact support if necessary. |
Спецификације
- Назив модела: Conga 5000 Carpet&Spot Clean XXL
- Број модела ставке: 08441
- Бренд: Цецотец
- Снага: 650 В
- Снага усисавања: 11 кПа
- Капацитет резервоара за чисту воду: 1.4 литара
- Капацитет резервоара за прљаву воду: 1.2 литара
- Извор напајања: Цордед Елецтриц
- Дужина кабла за напајање: 4 метара
- Suction Hose Length: 1.2 метара
- Радни радијус: Approximately 5 meters (cable + hose)
- Тежина артикла: 4.46 килограма
- Боја: Црно
- EU Spare Parts Availability: 10 године
Image: Highlights the 650W maximum power of the spot cleaner.
Image: Shows the 1.2-meter suction hose, providing extended reach for cleaning.
Гаранција и подршка
For warranty information, technical support, or spare parts, please refer to the warranty card included with your product or contact Cecotec customer service directly. Keep your purchase receipt as proof of purchase.
