1. Увод
This manual provides essential information for the safe and efficient operation of your Einhell AQUINNA PX-C Cordless Garden Water Pump. Please read these instructions carefully before using the product and keep them for future reference. The AQUINNA water pump is designed for transferring water from various sources like rainwater barrels, wells, or cisterns for garden and home use, offering a flexible and environmentally friendly solution.
2. Безбедносна упутства
Увек се придржавајте следећих мера предострожности како бисте спречили повреде и оштећење производа:
- Прочитајте сва упутства: Familiarize yourself with the controls and proper use of the pump.
- Лична безбедност: Wear appropriate personal protective equipment (PPE) when operating the pump.
- Електрична сигурност: Ensure batteries are correctly inserted and charged. Do not expose the pump or batteries to rain or wet conditions.
- Извор воде: Only use the pump for clean water. Do not pump flammable, corrosive, or explosive liquids.
- Деца и пролазници: Држите децу и неовлашћена лица даље од радног простора.
- Одржавање: Искључите батерије пре него што извршите било какво одржавање или чишћење.
- Термичка заштита: The pump is equipped with thermal protection to prevent motor overloading. If activated, allow the pump to cool down before resuming operation.
3. Производ је готовview
The Einhell AQUINNA PX-C is a powerful cordless garden water pump designed for versatility and ease of use. Key features include:
- Бежични рад: Powered by two 18V Power X-Change batteries (sold separately).
- ЕЦО прекидач: Two settings for economy mode (reduced pressure, longer runtime) or full power (BOOST mode).
- Water Filler & Drain Screw: For easy priming and frost protection.
- Топлотна заштита: Штити мотор од прегревања.
- Дршка за ношење: За удобан превоз.
- Robust Metal Connectors: Durable connections for inlet and discharge hoses.
- Поклопац батерије: Protects batteries from water and dust.
Слика 3.1: Готовоview of the Einhell AQUINNA PX-C pump, highlighting the ECO switch, carrying handle, suction/delivery height, water drain plug, and flow rate.

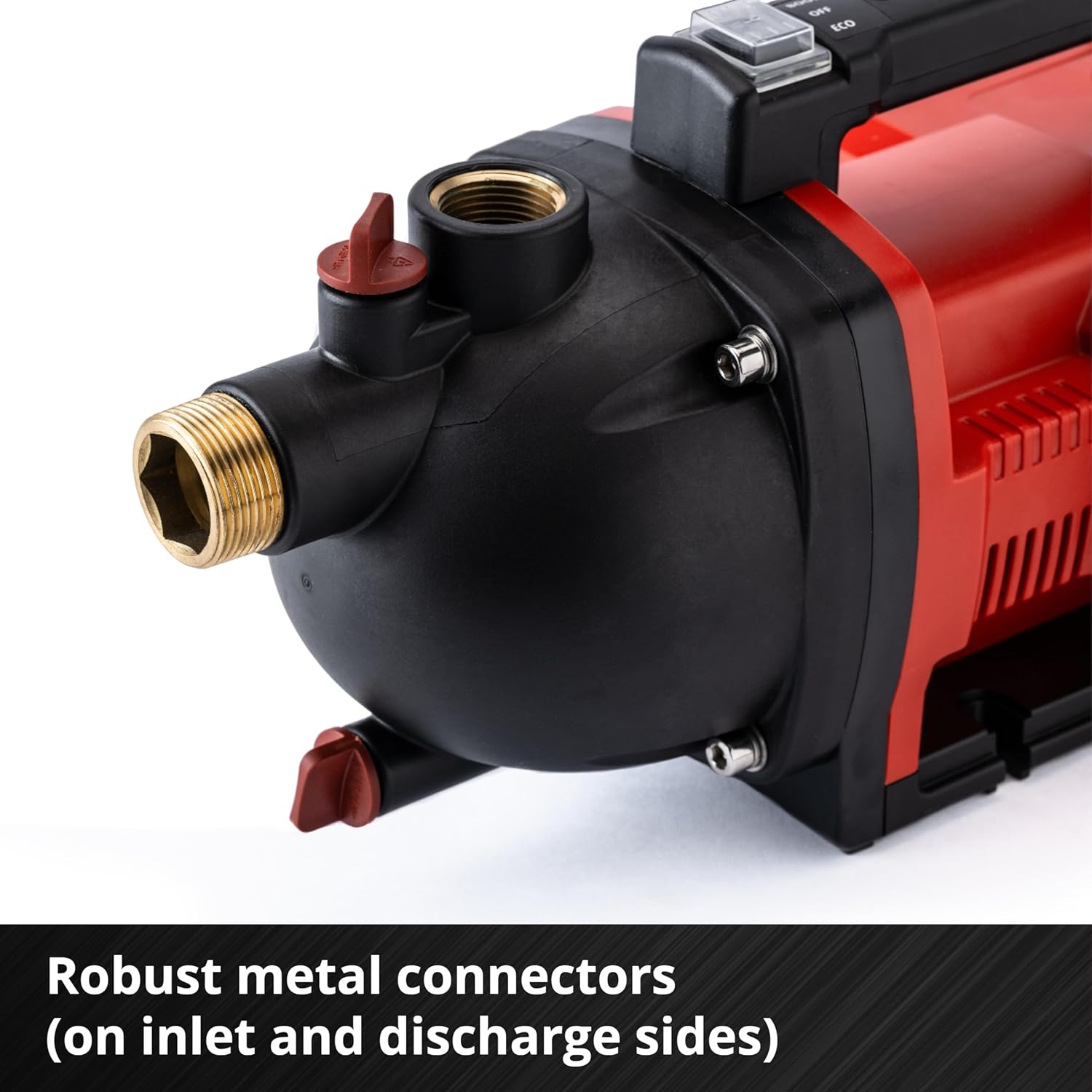

Слика 3.2: Detail of the robust metal connectors on both the inlet and discharge sides of the pump, ensuring secure hose attachments.
Слика 3.3: The protective cover for the battery compartment, designed to shield the batteries from water and dust during operation.
Слика 3.4: The ECO mode switch, allowing users to select between energy-saving mode for extended runtime or BOOST mode for maximum power.
4. Подешавање
4.1. Инсталација батерије
The AQUINNA PX-C pump requires two 18V Power X-Change batteries for operation. Batteries and charger are sold separately. For optimal performance, 2 x 4.0 Ah batteries or higher are recommended.
- Отворите поклопац одељка за батерије.
- Insert two charged 18V Power X-Change batteries into their respective slots. Ensure they click securely into place.
- Close the battery compartment cover firmly to protect the batteries from water and dust.
Слика 4.1: Illustration of inserting two 18V Power X-Change batteries into the pump's twin-pack battery compartment.
4.2. Hose Connections
Connect the intake and discharge hoses securely to the pump.
- The intake side connection is 1-1/4" NPT male.
- The pressure side connection is 1" NPT female - 3/4" 11.5 GHT male.
- Ensure all connections are tight to prevent leaks and maintain suction.
- It is recommended to use an inner hose with a check valve on the intake side to prevent backflow and aid in priming.
4.3. Пуњење пумпе
Before first use or after the pump has run dry, it must be primed:
- Ensure the intake hose is submerged in the water source.
- Locate the water filler screw on the pump.
- Unscrew the water filler screw and slowly fill the pump housing with water until it is full.
- Replace and tighten the water filler screw.
- Пумпа је сада спремна за рад.
5. Операција
5.1. Покретање пумпе
- Ensure the pump is properly set up and primed.
- Place the pump on a stable, level surface near your water source.
- Press the ON/OFF switch to start the pump.
5.2. ECO Switch Functionality
The ECO switch allows you to choose between two operating modes:
- ЕКО режим: Provides reduced delivery pressure, which extends battery runtime. Ideal for lighter watering tasks.
- БООСТ режим: Delivers full power for maximum flow rate and pressure. Suitable for demanding applications.
Слика 5.1: Approximate battery runtime in ECO mode for various Power X-Change battery capacities (2x18V configuration).
Слика 5.2: Approximate battery runtime in BOOST mode for various Power X-Change battery capacities (2x18V configuration).
5.3. Water Transfer
Once the pump is running, water will be drawn from the source and delivered through the discharge hose. Monitor the water flow and adjust the ECO switch as needed for your application.

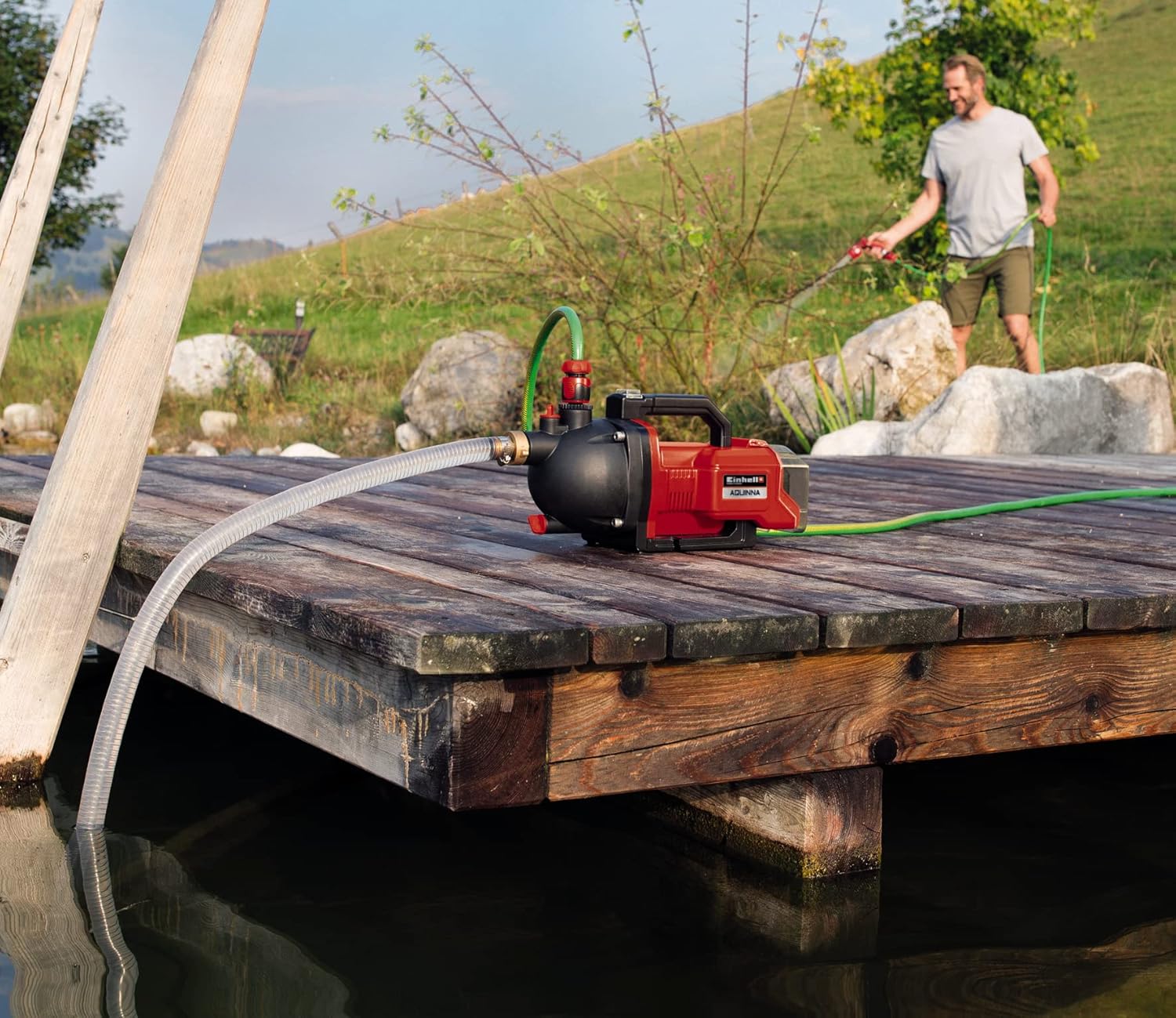

Слика 5.3: The AQUINNA PX-C pump in use, demonstrating its portability and effectiveness for garden watering from a natural water source.
6. Одржавање
6.1. Генерално чишћење
After each use, especially when pumping dirty water, flush the pump with clean water to prevent sediment buildup. Wipe down the exterior of the pump with a damp тканина.
6.2. Заштита од смрзавања
To protect the pump from frost damage during cold seasons:
- Искључите батерије.
- Unscrew the water drain screw located at the bottom of the pump.
- Allow all water to drain completely from the pump housing.
- Replace and tighten the water drain screw.
- Store the pump in a frost-free environment.

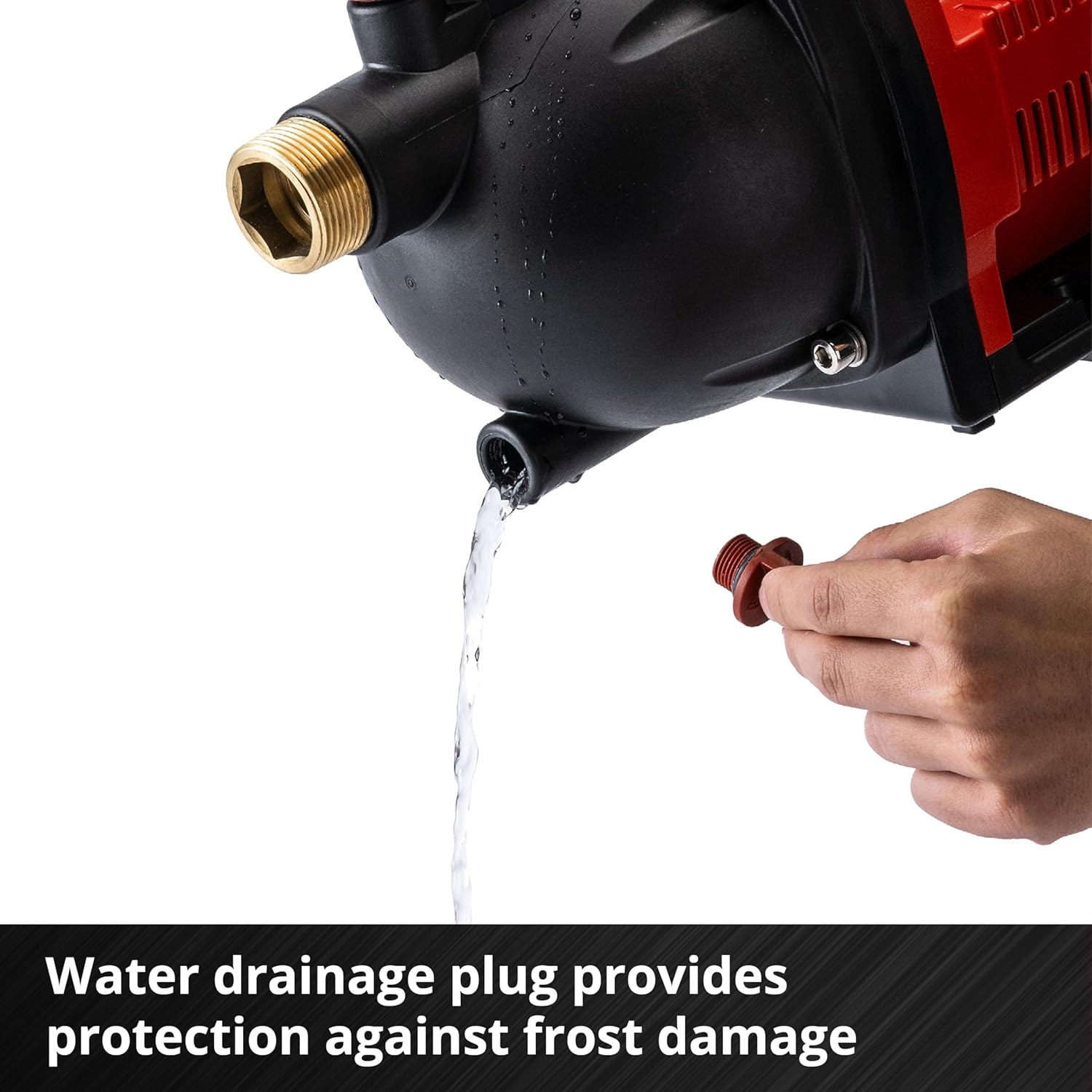

Слика 6.1: The water drainage plug being removed to protect the pump from frost damage by allowing all internal water to escape.
КСНУМКС. Решавање проблема
| Проблем | Могући узрок | Решење |
|---|---|---|
| Pump does not start or has low flow. | Batteries are not charged or incorrectly inserted. Pump is not primed. Intake hose is clogged or kinked. Air in the system. |
|
| Пумпа се зауставља током рада. | Thermal protection activated due to motor overloading. Batteries are depleted. |
|
| Вода цури из прикључака. | Loose hose connections. Damaged seals. |
|
8. Спецификације
| Феатуре | Детаљ |
|---|---|
| Број модела | 4180403 |
| Извор напајања | 36V (2 x 18V Power X-Change batteries) |
| Макс. Руководилац испоруке | КСНУМКС фт. (КСНУМКС м) |
| Макс. Висина усисавања | КСНУМКС фт. (КСНУМКС м) |
| Max. Delivery Rate | 792 US Gallon per hour (3,000 L/h) |
| Intake Connection | 1-1/4" NPT male |
| Прикључак под притиском | 1" NPT female - 3/4" 11.5 GHT male |
| Димензије производа | 44.77 к 113.79 к 20.32 цм |
| Тежина | 4.8 кг |
| Произвођач | Еинхелл |
9. Гаранција и подршка
9.1. Информације о гаранцији
Einhell provides a 2 година гаранције for this product, ensuring quality and durability. Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects and material faults under normal use conditions.
Слика 9.1: Einhell's 2-Year Warranty commitment, ensuring product quality and customer satisfaction.
9.2. Корисничка подршка
For technical assistance, spare parts, or warranty inquiries, please contact Einhell customer service. Refer to the official Einhell webвеб-сајт или паковање вашег производа за најновије контакт информације.
