X-PRO X19 125cc Dirt Bike User Manual

1. Безбедносне информације

УПОЗОРЕЊЕ: This dirt bike is intended for OFF-ROAD USE ONLY. It is not designed or certified for public road use. Always wear appropriate safety gear, including a helmet, eye protection, gloves, and protective clothing, when operating the vehicle.

Предлог 65 Упозорење: Овај производ може да садржи хемикалије за које је држава Калифорнија утврдила да изазивају рак и урођене мане или друге репродуктивне штете. За више информација посетите ввв.П65Варнингс.ца.гов.

• Always perform a pre-ride inspection before each use.
• Уверите се да су све матице и вијци добро затегнути.
• Never operate the dirt bike under the influence of alcohol or drugs.
• Supervise young riders closely.
• Understand and follow all local laws and regulations regarding off-road vehicle use.

2. Производ је готовview

The X-PRO X19 125cc Dirt Bike is designed for off-road riding, featuring a reliable Zongshen brand engine and a 4-speed semi-automatic transmission. It is equipped with large 17-inch front and 14-inch rear wheels for improved ground clearance and handling on varied terrain.

Кључне карактеристике:

• Мотор: 125cc Zongshen Brand Engine, known for reliability and power.
• Преношење: 4-Speed Semi-Automatic, allowing gear changes without a clutch.
• Стартни систем: Kick Start.
• Точкови: Large 17-inch front and 14-inch rear wheels for enhanced off-road capability.
• суспензија: Dual suspension system for a smoother ride.
• кочнице: Disc brakes for effective stopping power.

Слике производа:

3. Подешавање и монтажа

The X-PRO X19 Dirt Bike requires some assembly upon arrival. This typically includes attaching the handlebars, front wheel, front fender, and number plate. Brake adjustments may also be necessary.

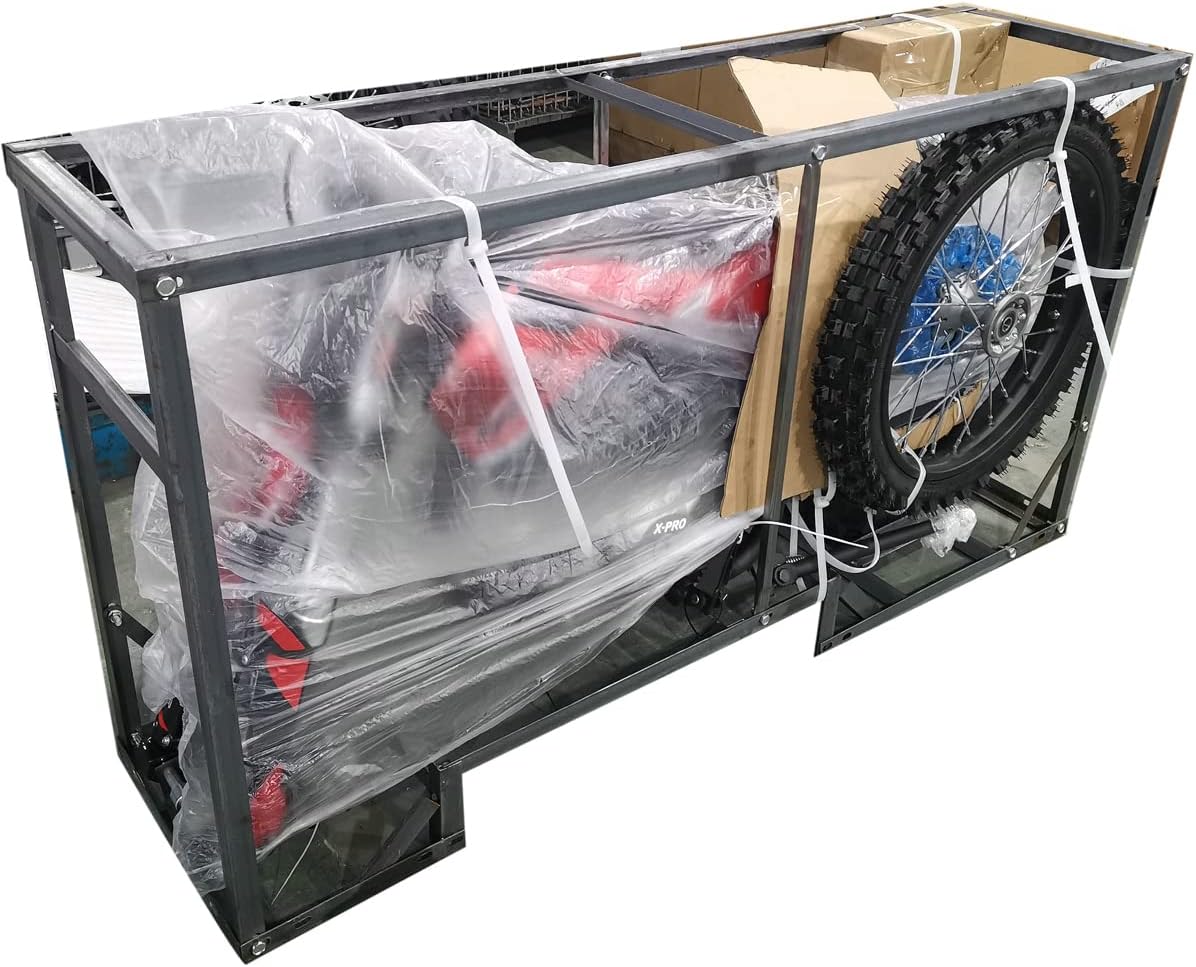

• Распакивање: Carefully remove the dirt bike from its shipping crate and packaging. Inspect for any shipping damage.
• Ручице: Attach the handlebars to the triple clamps. Ensure they are centered and tightened securely.
• Предњи точак: Install the front wheel, ensuring the axle is properly aligned and tightened. Verify brake caliper alignment.
• Front Fender & Number Plate: Mount the front fender and number plate according to the provided hardware.
• Провере течности: Before starting, check engine oil levels and ensure the fuel tank is filled with appropriate fuel.
• Инспекција пре вожње: Perform a thorough inspection of all fasteners, cables, and controls before the first ride.

4. Упутство за употребу

Покретање мотора:

1. Ensure the fuel petcock is in the "ON" position.
2. If the engine is cold, engage the choke.
3. Locate the kick start lever on the right side of the bike.
4. With firm and consistent pressure, push the kick start lever down through its full stroke. Repeat until the engine starts.
5. Once the engine starts, gradually disengage the choke as the engine warms up.

Shifting Gears (4-Speed Semi-Automatic):

The X-PRO X19 features a 4-speed semi-automatic transmission, meaning you can shift gears without manually operating a clutch lever. The shift pattern is typically 1-N-2-3-4 (all up or 1 down, N, then 2,3,4 up).

• To shift up, gently lift the shift lever with your foot.
• To shift down, press the shift lever down with your foot.
• Practice shifting at low speeds in a safe, open area until you are comfortable with the operation.

Јахање:

• Always maintain control and be aware of your surroundings.
• Adjust your speed to the terrain and your skill level.
• Use both front and rear brakes smoothly for effective stopping.
• Avoid sudden acceleration or braking, especially on loose surfaces.

5. Одржавање

Regular maintenance is crucial for the longevity and safe operation of your X-PRO X19 Dirt Bike.

• Прва замена уља: It is highly recommended to change the engine oil after the first hour of operation to remove any manufacturing debris. Subsequently, follow the manufacturer's recommended oil change intervals.
• Моторно уље: Use the recommended type and viscosity of engine oil. Regularly check the oil level and top up as needed.
• Одржавање ланца: Keep the drive chain clean, lubricated, and properly tensioned.
• кочнице: Inspect brake pads for wear and check brake fluid levels (if applicable). Ensure brakes are functioning correctly.
• гуме: Check tire pressure before each ride. Inspect tires for wear and damage.
• Причвршћивачи: Periodically check and tighten all nuts, bolts, and fasteners, as vibrations from riding can loosen them.
• Ваздушни филтер: Редовно чистите или мењајте ваздушни филтер, посебно када возите у прашњавим условима.
• Подешавање мировања: The idle adjustment screw is typically located beneath a small, black rubber cap on the right side of the bike. Adjust as necessary to maintain a stable idle speed.

КСНУМКС. Решавање проблема

7. Спецификације

8. Гаранција и подршка

Информације о гаранцији:

The X-PRO X19 Dirt Bike comes with a 1-месечна гаранција. Please refer to your purchase documentation for specific terms and conditions. Note that some components may have different warranty periods or exclusions.

Корисничка подршка:

For technical assistance, parts inquiries, or warranty claims, please contact X-PROUSA customer service. X-PROUSA is committed to providing professional technical support and fast service response to ensure customer satisfaction.

It is recommended to have your model number (DB-K020) and purchase date available when contacting support.
