HAYEAR HY-900B USB3.0 Digital Microscope Camera Instruction Manual

1. Увод

This manual provides essential information for the proper setup, operation, and maintenance of your HAYEAR HY-900B USB3.0 Digital Microscope Camera. This 8-megapixel camera is designed for various applications including industrial vision, visual inspection, and integration with microscopes and astronomical telescopes. It offers high-speed video transmission and compatibility with multiple operating systems.

2. Садржај пакета

Проверите да ли су све ставке наведене у наставку укључене у ваш пакет:

• 1 x HAYEAR HY-900B USB3.0 Digital Microscope Camera
• 1 к УСБ3.0 кабл
• 1 x Software Disk

3. Производ је готовview

The HAYEAR HY-900B is a compact and versatile digital microscope camera. Familiarize yourself with its components:

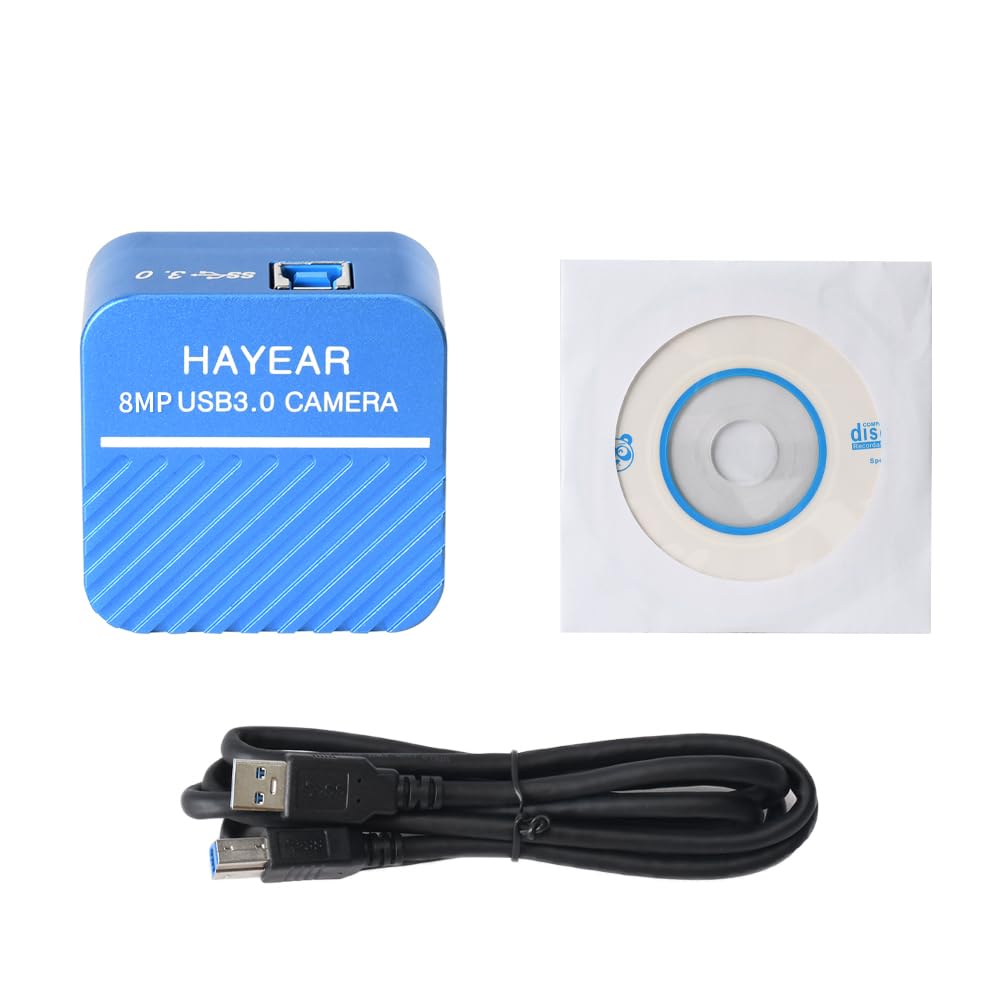

Слика 3.1: Фронт view of the HAYEAR HY-900B camera, showing the brand and 8MP USB3.0 Camera label.

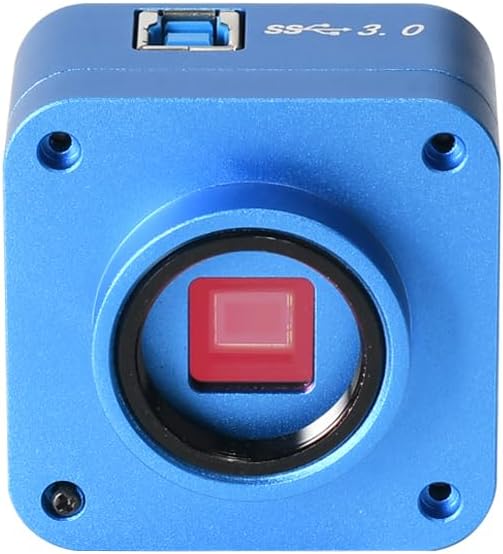

Слика 3.2: Фронт view of the camera, highlighting the C-mount lens interface and the sensor.

Слика 3.3: Врх view of the camera, showing the USB 3.0 port for high-speed data transfer.

Слика 3.4: Англед view of the camera with the USB 3.0 cable connected, demonstrating its compact form factor.

4. Упутства за подешавање

Follow these steps to set up your HAYEAR HY-900B camera:

1. Повежите камеру: Connect the HAYEAR HY-900B camera to your computer using the provided USB3.0 cable. Ensure it is connected to a USB3.0 port on your PC or laptop for optimal performance and to prevent low power issues.
2. Инсталирајте софтвер: Insert the included software disk into your computer's optical drive. Follow the on-screen instructions to install the HAYEAR measurement software. This software is compatible with Windows, Linux, and Mac OS (UVC compatible).
3. Инсталација драјвера: The camera supports USB Video Class (UVC) protocols, meaning it is generally plug-and-play and does not require separate driver installation on most modern operating systems (WinXP/Win7/Win10/Win11, Linux, Android, MAC-OS X10.4.8 or later).
4. Монтажа (опционо): The camera features a standard C-mount. It can be directly attached to compatible monocular zoom lenses or, with a CS ring adapter, to stereo trinocular microscopes, FA machine vision lenses, or other 2D/3D monocular lenses.

5. Руковање камером

Once the camera is connected and software is installed, you can begin operation:

1. Покрени софтвер: Open the HAYEAR measurement software on your computer. The camera's live feed should appear in the software interface.
2. Подесите подешавања: The software provides controls for various image parameters, including Exposure, Gamma, Color, Gain, Contrast, and Brightness. Adjust these settings to achieve optimal image quality for your specific application.
3. Фокусирање: If using with a microscope or lens, adjust the focus mechanism of your optical equipment to bring the specimen into sharp view.
4. Пријаве: The HY-900B camera is suitable for a wide range of applications, including detailed visual inspection of circuit boards, biological samples, and other microscopic subjects.

6. Одржавање

To ensure the longevity and optimal performance of your camera:

• Чишћење: Use a soft, dry cloth to clean the camera body. For the lens and sensor, use specialized optical cleaning solutions and cloths to avoid scratches or damage.
• Складиштење: Чувајте камеру на хладном и сувом месту, даље од директне сунчеве светлости и екстремних температура.
• Руковање: Избегавајте испуштање или излагање камере јаким ударцима.

КСНУМКС. Решавање проблема

If you encounter issues with your HAYEAR HY-900B camera, refer to the following common solutions:

• Camera Not Detected/Low Power: Ensure the camera is connected to a USB3.0 port on your PC or laptop. USB2.0 ports may not provide sufficient power or data bandwidth, leading to detection issues or poor performance.
• Нема слике/црни екран: Verify that the software is correctly installed and launched. Check all cable connections. Ensure the lens cap (if applicable) is removed and any connected microscope or lens is properly configured.
• Лош квалитет слике: Adjust the focus of your optical equipment. Use the software's image settings (Exposure, Gain, Brightness, Contrast) to optimize the image. Ensure adequate lighting for your specimen.
• Софтвер не реагује: Close and restart the software. If the issue persists, restart your computer.

8. Спецификације

Technical specifications for the HAYEAR HY-900B USB3.0 Digital Microscope Camera:

9. Гаранција и подршка

гаранција: The HAYEAR HY-900B USB3.0 Digital Microscope Camera comes with a 1-year manufacturer's warranty.

Подршка: For any questions, feedback, or technical assistance, please contact HAYEAR customer support. Your inquiries are welcome.
