GP RECYKO GP B441 USB Charger and D451 Docking Station User Manual

1. Увод

This manual provides instructions for the GP RECYKO GP B441 USB Charger and the accompanying D451 Docking Station, designed for charging AA and AAA NiMH rechargeable batteries. This compact charging unit offers intelligent safety features and techniques to ensure efficient and safe battery charging.

Садржај пакета

Проверите да ли су све ставке присутне у вашем пакету:

• 1 x GP B441 USB Charger
• 4 x GP ReCyko AA 2100mAh NiMH Rechargeable Batteries
• 1 x D451 Docking Station
• 1 к УСБ кабл за пуњење

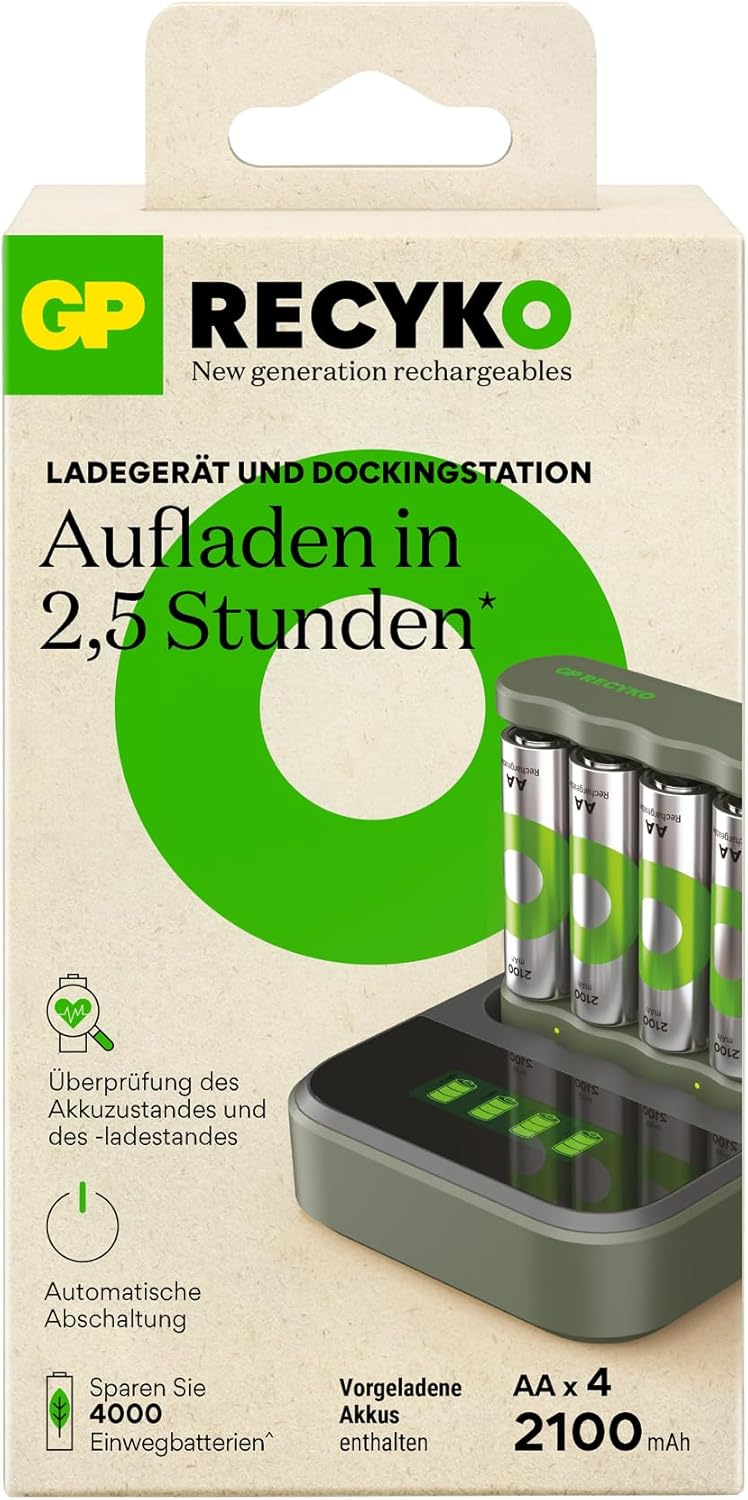

Figure 1: Package Contents - GP B441 USB Charger, 4 AA batteries, Docking Station, and USB Cable.

Figure 2: GP B441 USB Charger with Docking Station and Batteries.

2. Подешавање

Повезивање пуњача

1. Connect the provided USB charging cable to the GP B441 USB Charger.
2. Plug the other end of the USB cable into a compatible USB power source (e.g., computer USB port, USB wall adapter, or power bank) with a minimum output of DC 5V/1A.
3. The charger can be used independently or placed into the D451 Docking Station for enhanced charging and display features.

Уметање батерија

The GP B441 charger supports charging up to four AA or AAA NiMH rechargeable batteries simultaneously.

1. Ensure the batteries are NiMH rechargeable type. Do not attempt to charge disposable batteries.
2. Insert the batteries into the charging slots, observing the correct polarity (+ and -) as indicated on the charger.

Figure 3: Charger compatible with AA and AAA batteries.

3. Упутство за употребу

Процес пуњења

Once batteries are correctly inserted and the charger is connected to a power source, the charging process will begin automatically.

• The device charges 4 x AA 2100 mAh batteries in approximately 3 hours via a USB port.
• Charging time for 2100mAh AA batteries is approximately 180 minutes (with input min. DC 5.0V 1.0A min., 2 batteries).
• Charging time for 850mAh AAA batteries is approximately 180 minutes (with input min. DC 5.0V 1.0A min., 2 batteries).

Figure 4: Fast charging capability of the GP B441 charger.

ЛЕД индикатори

The LED display provides visual feedback on the charging status and battery condition:

• Green LED on for 0.5 seconds after USB power connection: Indicates the charger has received power.
• Зелени ЛЕД полако трепери: Batteries are currently charging.
• Green LED illuminated (solid): Батерије су потпуно напуњене.
• Green LED flashes fast: Indicates defective batteries or disposable batteries have been inserted.

Figure 5: LED Charge Status Display.

Battery Status Check Function

The charger includes a function to quickly check the battery status. This allows you to determine if your batteries are sufficiently charged or require recharging, helping to avoid unexpected situations with empty batteries and unnecessary charging.

4. Сигурносне карактеристике

The GP B441 charger incorporates multiple safety mechanisms to protect both the batteries and the user:

• Automatic Shut Off Timer: Prevents overcharging. The timer is 5 hours when using 1 channel or 10 hours when using 2 channels.
• Full Charge Detection (-DV): Automatically detects when batteries are fully charged and stops the charging process.
• Прекид температуре: Monitors battery temperature during charging and stops if overheating is detected.
• Примарна заштита батерије: Prevents charging of non-rechargeable (disposable) batteries.
• Заштита од обрнутог поларитета: Protects against damage if batteries are inserted incorrectly.
• These features collectively prevent overcharging, over-voltage, short circuits, and help extend battery life.

Figure 6: Automatic shut-off feature for fully charged batteries.

5. Одржавање

To ensure optimal performance and longevity of your GP RECYKO charger and batteries, follow these maintenance guidelines:

• Keep the charger and docking station clean and dry. Use a soft, dry cloth to wipe surfaces.
• Избегавајте излагање уређаја екстремним температурама, директној сунчевој светлости или високој влажности.
• Store the charger and batteries in a cool, dry place when not in use.
• Do not attempt to disassemble or modify the charger or docking station.

КСНУМКС. Решавање проблема

Ако наиђете на проблеме са пуњачем, погледајте следеће уобичајене кораке за решавање проблема:

• Batteries not charging / LED flashes fast:
  • Ensure batteries are correctly inserted with the correct polarity.
  • Verify that the batteries are NiMH rechargeable type. The fast flashing green LED indicates that defective or disposable batteries have been inserted.
  • Check the USB cable connection and ensure the power source is providing sufficient power (DC 5V/1A minimum).
  • Try charging fewer batteries at a time to see if the issue persists.
• Пуњач се не укључује:
  • Уверите се да је USB кабл безбедно повезан и са пуњачем и са извором напајања.
  • Испробајте други УСБ кабл или извор напајања да бисте искључили неисправну компоненту.

Ако проблеми и даље постоје, контактирајте корисничку подршку за даљу помоћ.

7. Спецификације

GP B441 USB Charger

GP D451 Docking Station

8. Гаранција и подршка

Information regarding product warranty and customer support details is not available in the provided product data. Please refer to the product packaging or the manufacturer's official website for warranty terms and contact information for support.
