wolfcraft PRO Miter Box and Angle Finder 6956000 Instruction Manual

1. Увод

The wolfcraft PRO Miter Box and Angle Finder 6956000 is a versatile 2-in-1 tool designed for precise measurement and cutting of miter joints, particularly for skirting boards. This manual provides essential information for the safe and effective use of your tool, ensuring optimal results for your projects. It is ideal for skirting boards up to 120 mm in height.

Figure 1: wolfcraft PRO Miter Box and Angle Finder with removable trestles and guide pins.

2. Безбедносна упутства

• Always wear appropriate personal protective equipment, including safety glasses and gloves, when operating the tool.
• Ensure the workpiece (skirting board) is securely clamped or held in place before cutting to prevent movement and ensure accuracy.
• Use a sharp hand saw appropriate for the material being cut. Dull blades can cause kickback or imprecise cuts.
• Keep hands and fingers clear of the saw blade's path at all times.
• Do not force the saw; let the blade do the work.
• Одржавајте радни простор чистим и добро осветљеним.
• Store the tool in a dry, safe place out of reach of children.

3. Компоненте

The wolfcraft PRO Miter Box and Angle Finder consists of the following main components:

• Главно тело: The central unit housing the angle measurement arms and cutting guides.
• Флексибилне руке: Two movable arms for measuring internal and external angles (85° to 275°).
• Locking Screws: Two screws to secure the measured angle.
• Sliding Stops: Adjustable stops to hold skirting boards up to 40 mm thick.
• Guide Pins: Four integrated 140 mm guide pins for hand saw guidance.
• Plastic Protections: Covers around the guide pins to prevent saw jamming and protect the blade.
• Removable Trestles: Two trestles for stabilizing longer skirting boards during cutting.
• Противклизне подлоге: For secure placement during use.

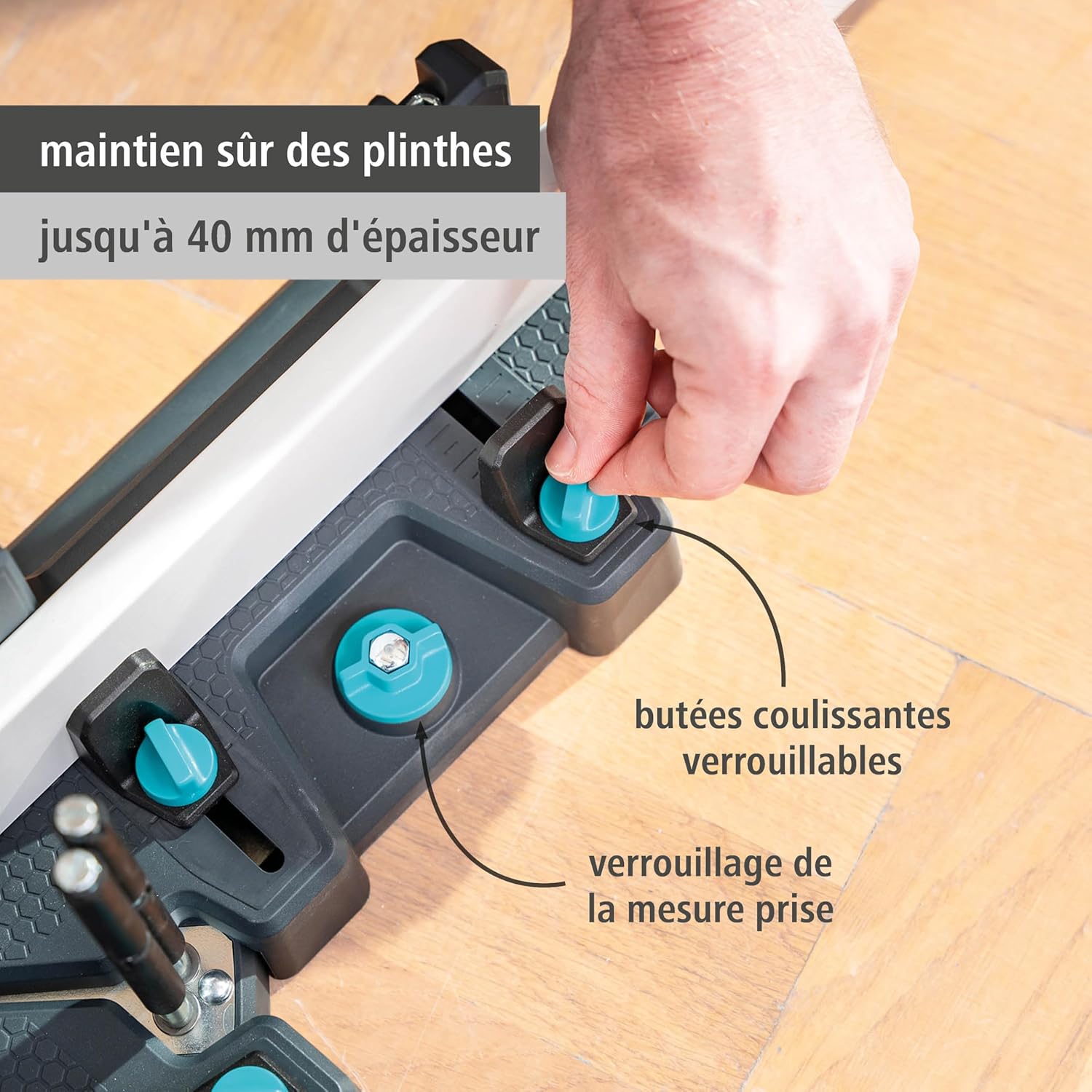

Figure 2: Detail of lockable sliding stops and angle measurement locking screw.

Figure 3: Integrated guide pins with plastic protection for precise saw cuts.

4. Подешавање

The tool is supplied partially disassembled. Follow these steps for initial setup:

1. Распакивање: Пажљиво уклоните све компоненте из паковања.
2. Assemble Guide Pins: If not already assembled, insert the guide pins into their designated slots on the main body. Ensure they are securely fastened.
3. Attach Trestles (Optional): For longer skirting boards, attach the two removable trestles to the sides of the miter box to provide additional support.
4. Пласман: Place the miter box on a stable, flat, and clean surface. The anti-slip pads on the base will help secure it during use.

Figure 4: The tool's flexible arms allow angle measurement from 85° to 275°.

5. Упутство за употребу

5.1 Measuring Angles

The tool can measure both internal and external angles directly from the wall.

1. Позиционирање: Place the miter box directly against the corner where the skirting board will be installed.
2. Подесите руке: Adjust the two flexible arms to align perfectly with the walls of the corner. The metal arms are designed to reach into narrow areas.
3. Lock Angle: Once the arms are aligned, tighten the two locking screws to secure the measured angle. The tool automatically bisects the angle, setting the correct cutting angle for your miter joint.

Figure 5: Measuring an internal corner angle with the flexible arms.

Figure 6: Metal arms allow angle measurement even in tight spaces.

5.2 Making Miter Cuts

After measuring the angle, proceed with cutting:

1. Position Skirting Board: Place the skirting board (up to 120 mm high and 40 mm thick) into the miter box. Ensure it is flush against the back and bottom surfaces.
2. Secure Skirting Board: Adjust the sliding stops to firmly hold the skirting board in place. For longer boards, use the removable trestles for additional stability.
3. Align Saw: Position your hand saw between the integrated guide pins. The plastic protections will help guide the saw and prevent it from binding or damaging the blade.
4. рез: Carefully saw through the skirting board, maintaining a steady and even stroke. The guide pins will ensure a precise miter cut.
5. Поновите: For the opposing piece of skirting board, the tool can be used in the opposite direction to achieve the complementary angle.

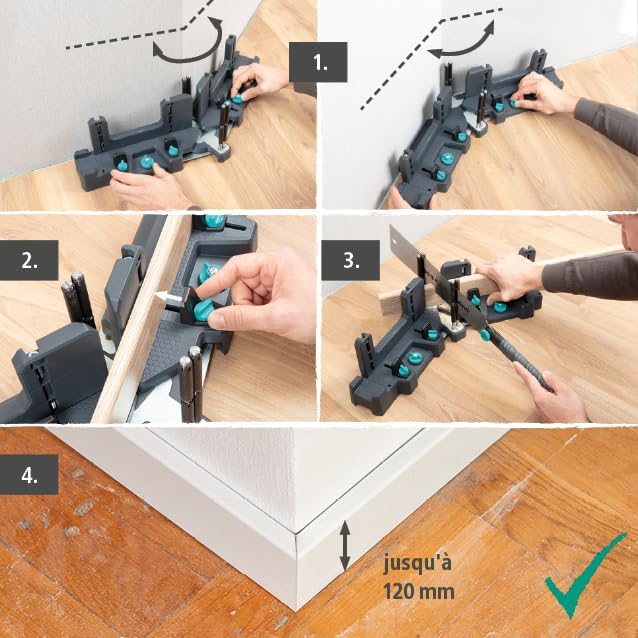

Figure 7: Step-by-step process for angle measurement and miter cutting.

Figure 8: Securing the skirting board with lockable sliding stops.

Figure 9: Making a precise miter cut with a hand saw.

Слика 10: Прample of a precisely fitted skirting board corner.

6. Одржавање

• Чишћење: After each use, remove sawdust and debris from the miter box using a brush or compressed air. Ensure the guide pins and sliding mechanisms are free of obstructions.
• инспекција: Regularly inspect the tool for any signs of wear or damage, especially to the guide pins, flexible arms, and locking mechanisms.
• Складиштење: Store the tool in a clean, dry environment to prevent corrosion and damage.

КСНУМКС. Решавање проблема

8. Спецификације

• Број модела: 6956000
• Бренд: волфцрафт
• Димензије производа (Д к Ш к В): 57.5 к 19.8 к 6.7 цм
• Тежина артикла: 2.43 килограма
• Material (Handle): Lightweight and durable plastic or synthetic material
• Material (Blade): Carbon steel (for compatible saws, not included)
• Боја: Греи
• Извор напајања: Мануал
• Посебна карактеристика: Лагана
• Укључене компоненте: 1 PRO Miter Box and Angle Finder, 2 Trestles
• Max Skirting Board Height: 120 мм
• Max Skirting Board Thickness: 40 мм
• Опсег угла: 85 до 275 степени
• Guide Pin Length: 140 мм
• Земља порекла: Словакиа

9. Гаранција и подршка

The wolfcraft PRO Miter Box and Angle Finder 6956000 comes with a 10-year wolfcraft warranty, reflecting its robust, durable, and high-quality "Made in Europe" construction.

For warranty claims, technical support, or spare parts availability, please contact wolfcraft customer service directly or visit their official website. Please refer to your purchase receipt for proof of purchase.

Figure 11: Quality assurance: Made in Europe with a 10-year guarantee.
