VEVOR Electric Meat Slicer 180W-190mm User Manual

1. Увод

Thank you for choosing the VEVOR Electric Meat Slicer. This manual provides essential information for the safe and efficient operation, maintenance, and care of your appliance. Please read all instructions carefully before use and retain this manual for future reference.

Image 1: VEVOR Electric Meat Slicer 180W-190mm, Model 1A-FS201.

2. Безбедносна упутства

WARNING: Improper use can lead to serious injury. Always follow these safety guidelines.

• Always unplug the slicer from the power outlet before assembling, disassembling, cleaning, or when not in use.
• Keep hands and fingers away from the blade during operation. The blade is extremely sharp.
• Use the food pusher to guide food. Never use your hands directly to push food towards the blade.
• Ensure the slicer is placed on a stable, flat, and dry surface before operation. Non-skid feet are provided for stability.
• Do not operate the slicer if any parts are damaged or missing.
• Држите децу и кућне љубимце подаље од уређаја током рада.
• Не потапајте моторну јединицу у воду или друге течности. Очистите је адamp тканина.
• Wear protective gloves when handling the blade during cleaning or maintenance.

Image 2: Key safety features including the blade guard, food pusher, non-skid feet, and power switch.

3. Компоненте производа

Familiarize yourself with the main parts of your VEVOR Electric Meat Slicer:

• оштрица: 190mm (7.5 inch) SUS420 stainless steel serrated blade for efficient slicing.
• Дугме за подешавање дебљине: Allows precise control over slice thickness (0-15mm).
• Food Carriage/Tray: Holds food securely during slicing.
• Продавац хране: Keeps hands away from the blade and applies pressure to food.
• Заштита сечива: Provides protection around the blade.
• Прекидач: Контрола укључивања/искључивања мотора.
• Неклизајућа стопала: Обезбеђује стабилност током рада.

Image 3: The 190mm SUS420 stainless steel serrated blade.

4. Подешавање

1. Распакујте све компоненте и уклоните сав материјал за паковање.
2. Place the slicer on a clean, dry, and stable countertop. Ensure the non-skid feet are firmly gripping the surface.
3. Ensure the blade is securely installed. If removed for cleaning, reattach it according to the cleaning instructions.
4. Verify that the food carriage and food pusher are correctly positioned.
5. Пре прве употребе, очистите све делове који ће доћи у контакт са храном као што је описано у одељку „Чишћење и одржавање“.

5. Упутство за употребу

This slicer is designed for slicing various foods such as meat, cheese, bread, and vegetables. For best results with frozen meat, it is recommended to thaw for approximately 15 minutes before slicing.

1. Припремају храну: Ensure food items are appropriately sized to fit on the food carriage. For frozen items, partial thawing is recommended.
2. Подесите дебљину реза: Use the thickness adjustment knob to select your desired slice thickness, ranging from 0 to 15mm (0 to 0.6 inches). Turn the knob clockwise for thicker slices and counter-clockwise for thinner slices.
3. Место Храна: Position the food item firmly on the food carriage against the food guide plate. Secure it with the food pusher.
4. Укључено: Plug the slicer into a suitable power outlet. Press the power switch to turn on the appliance. The blade will begin rotating at 80-120 RPM.
5. Slice Food: Gently push the food carriage back and forth, guiding the food towards the rotating blade using the food pusher. Maintain steady pressure for uniform slices.
6. Сакупите кришке: Sliced food will fall onto the collection tray (not included) or directly onto your work surface.
7. Искључивање: Once slicing is complete, turn off the power switch and unplug the appliance.

Image 4: Slicing various food types with the appliance.

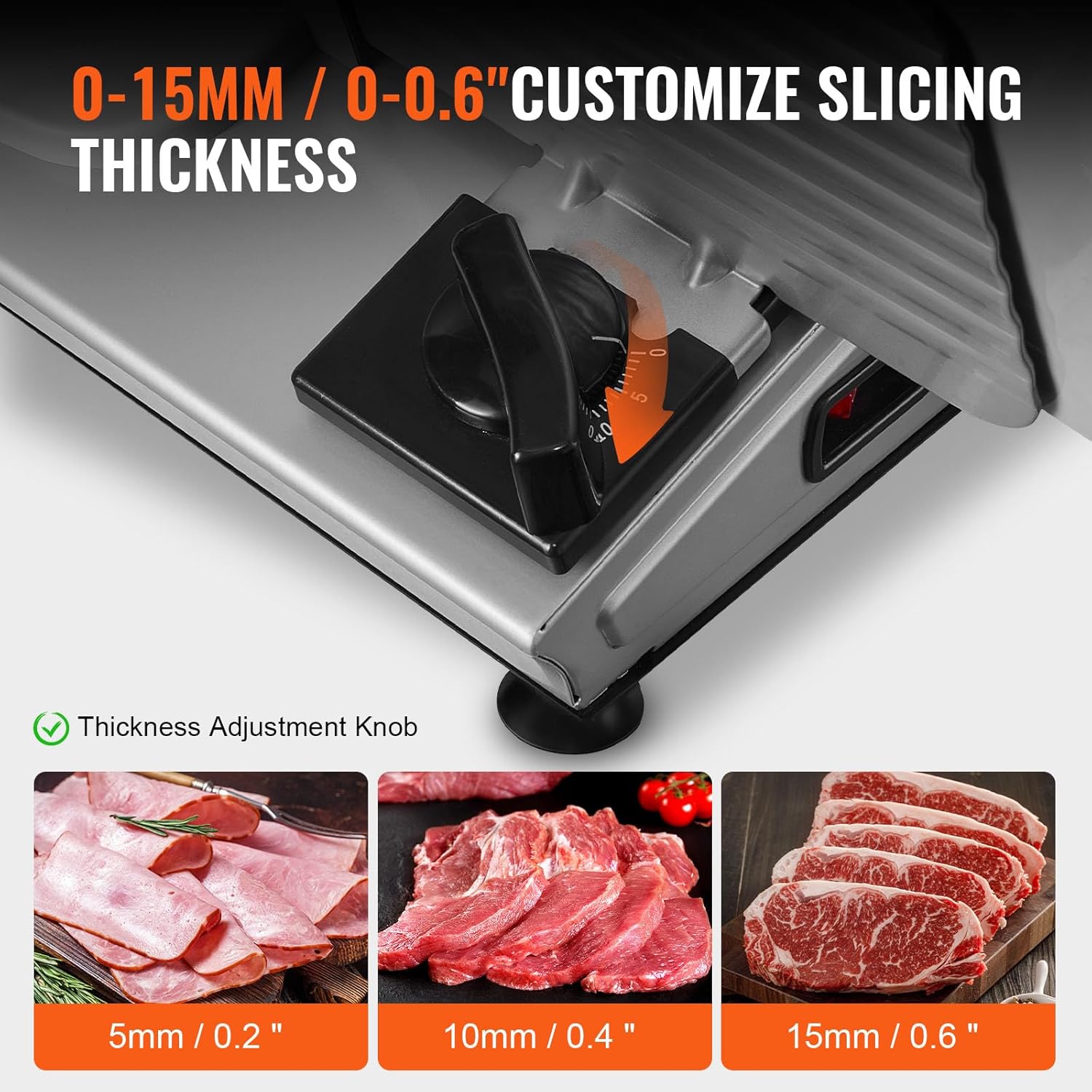

Image 5: Adjusting the slicing thickness from 0 to 15mm.

6. Чишћење и одржавање

WARNING: Always unplug the slicer before cleaning. The blade is extremely sharp; handle with care and wear protective gloves.

1. Растављање: The blade, food support, and food pusher are removable for thorough cleaning. Carefully remove these components.
2. Чишћење оштрице: Use the provided cleaning brush and warm soapy water to clean the blade. Rinse thoroughly.
3. Чишћење компоненти: Wash the food carriage, food pusher, and food guide plate with warm soapy water. Rinse and dry completely.
4. Чишћење главне јединице: Wipe the motor housing and exterior surfaces with a damp тканина. Не урањајте главну јединицу у воду.
5. Поновно састављање: Ensure all parts are completely dry before reassembling. Carefully reattach the blade, food support, and food pusher.
6. Складиштење: Чувајте секач на чистом и сувом месту када се не користи.

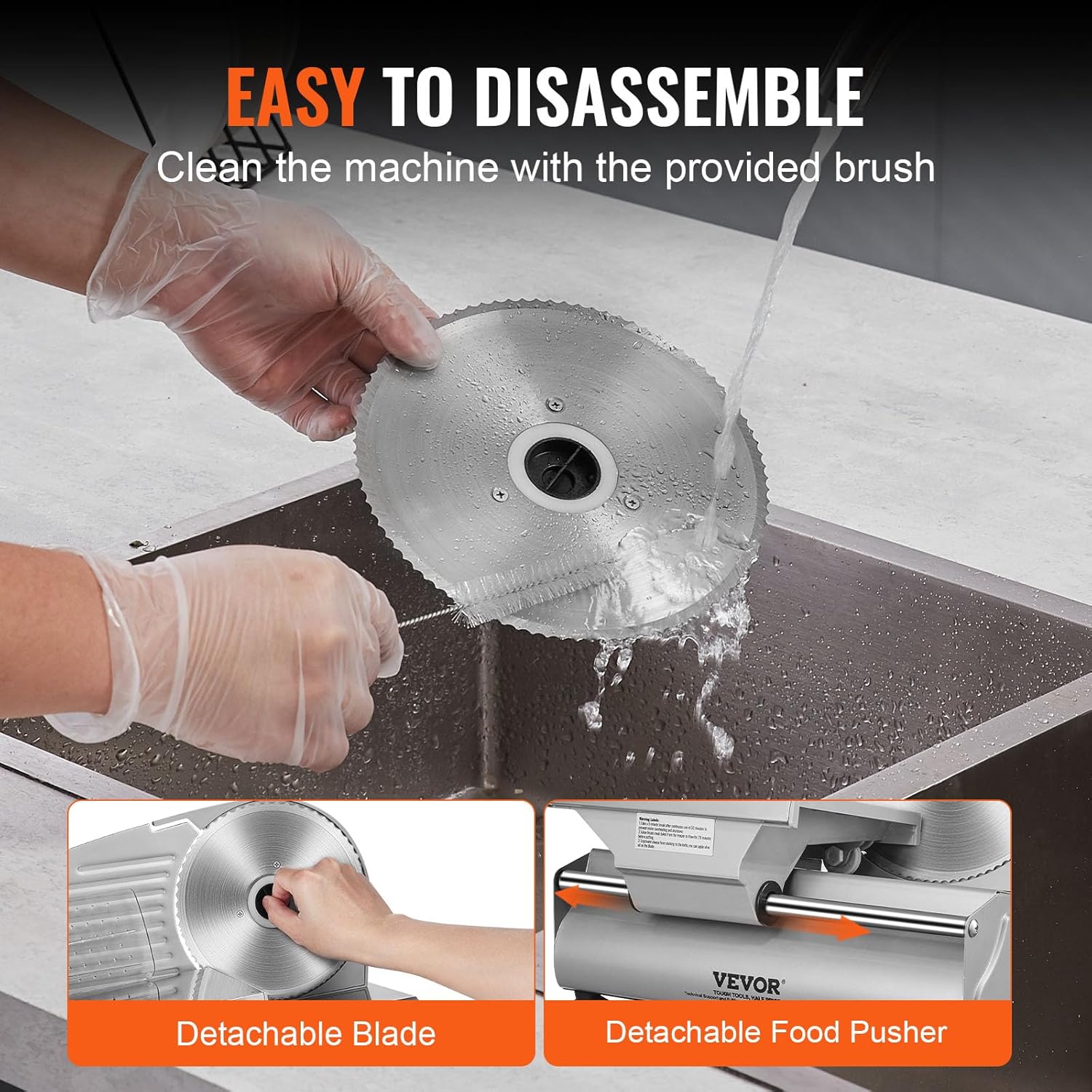

Image 6: Detachable blade being cleaned with a brush.

Image 7: The slicer shown with its cleaning brush accessory.

КСНУМКС. Решавање проблема

Ако наиђете на проблеме са секачем, погледајте следеће уобичајене проблеме и решења:

• Slicer does not turn on:
  • Проверите да ли је кабл за напајање безбедно прикључен у исправну утичницу.
  • Уверите се да је прекидач за напајање у положају „УКЉУЧЕНО“.
  • Проверите да ли се прекидач није искључио.
• Slices are uneven or difficult to cut:
  • Ensure the food item is properly positioned and secured with the food pusher.
  • Check if the thickness adjustment knob is set correctly.
  • For frozen meats, ensure they are partially thawed as recommended.
  • The blade may require cleaning if food residue is affecting its performance.
• Прекомерна бука током рада:
  • Ensure the slicer is on a stable, flat surface.
  • Check for any loose components or foreign objects near the blade.

If problems persist, contact VEVOR customer support for assistance.

8. Спецификације

Image 8: Product specifications and dimensions diagram.

9. Гаранција и подршка

VEVOR products are designed for durability and performance. For warranty information or technical support, please refer to the warranty card included with your product or visit the official VEVOR website. Please have your model number (1A-FS201) and purchase details ready when contacting support.
