Acer ODK390 9-in-1 USB C Hub Instruction Manual

1. Подешавање

The Acer ODK390 9-in-1 USB C Hub is designed for plug-and-play functionality with most compatible devices. Follow these steps to connect your hub and peripherals.

1.1 Повезивање чворишта са вашим уређајем

Connect the integrated USB-C cable from the hub to an available USB-C port on your laptop, tablet, or smartphone. Ensure your device supports USB Type-C DP Alt Mode for video transmission functions.

Image: Acer ODK390 USB C Hub connected to a laptop, illustrating the primary USB-C connection.

1.2 Повезивање периферних уређаја

• УСБ 3.0 уређаји: Plug your USB-A 3.0 devices (e.g., external hard drives, keyboards, mice, printers) into the available USB 3.0 ports on the hub. These ports support data transfer speeds of up to 5 Gbps.
• HDMI дисплеј: Connect an HDMI cable from your monitor or TV to the HDMI port on the hub for 4K@30Hz video output.
• VGA Display: Connect a VGA cable from your monitor or projector to the VGA port on the hub for video output.
• Етхернет мрежа: For a stable and fast wired internet connection, plug an Ethernet cable (CAT6 or higher recommended for 1Gbps speeds) into the RJ45 Ethernet port.
• СД/ТФ картице: Insert your SD or TF (Micro SD) memory cards into the corresponding slots for data access. The hub supports cards up to 1TB capacity.
• Снага напајања (PD 100W): To charge your host device (laptop, tablet, smartphone) while using the hub, connect your USB-C power adapter to the PD 100W USB-C input port on the hub. Note: This port is for charging input only and does not support data transfer.

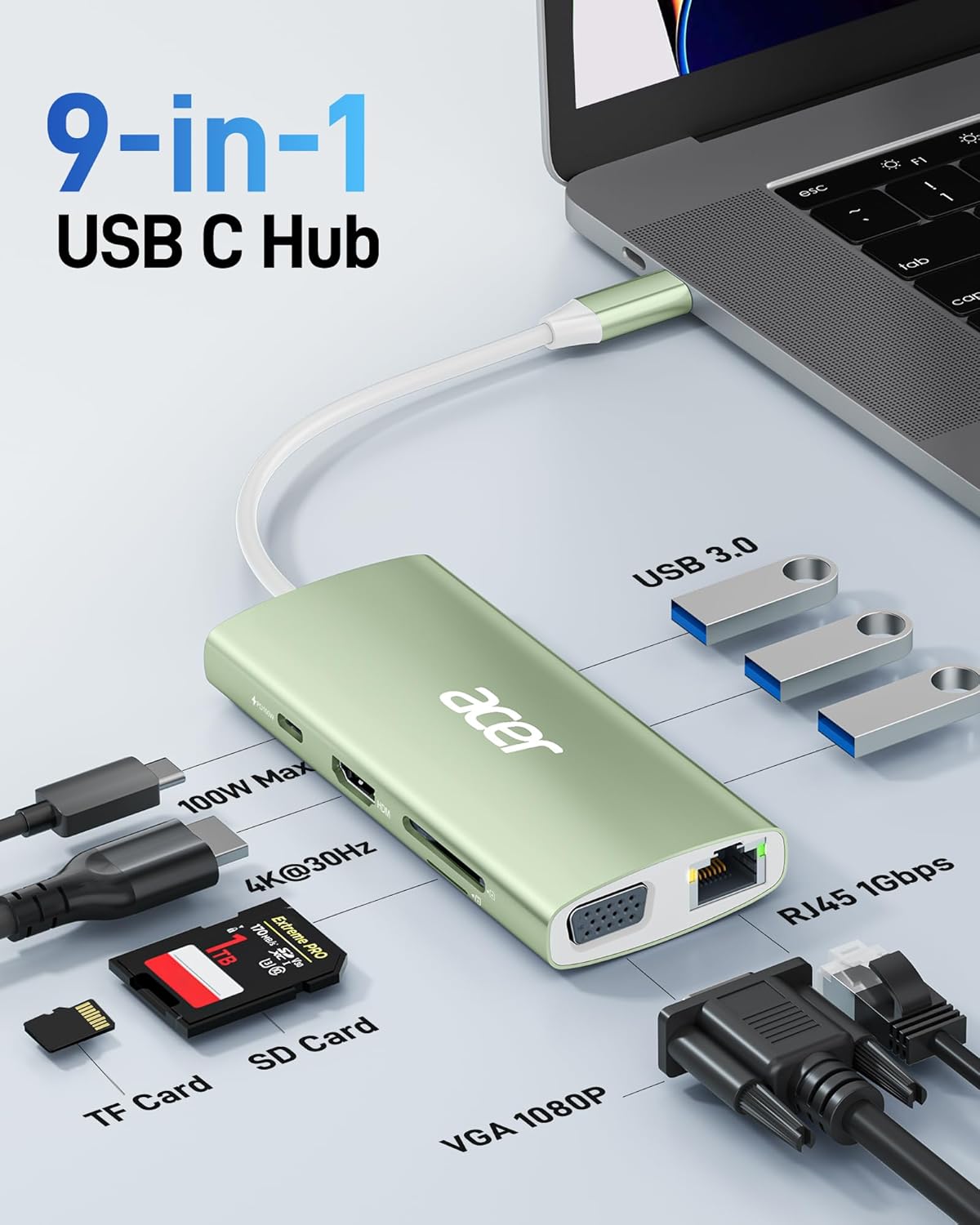

Слика: Оверview of the Acer ODK390 USB C Hub, highlighting its various ports including USB 3.0, 100W PD, 4K@30Hz HDMI, TF Card, SD Card, VGA 1080P, and RJ45 1Gbps Ethernet.

2. Упутство за употребу

The Acer ODK390 hub extends your device's connectivity and display capabilities. Ensure all connections are secure for optimal performance.

2.1 Video Output (HDMI & VGA)

• 4К ХДМИ излаз: Connect an HDMI-enabled display to the HDMI port. The hub supports 4K resolution at 30Hz, providing high-definition video.
• ВГА излаз: Connect a VGA-enabled display to the VGA port. This supports up to 1080P resolution.
• Двоструки режими приказа:
  • Режим огледала: Duplicate your laptop's screen onto external monitors.
  • Проширени режим: Проширите радну површину на више екрана за повећање радног простора.

  Note: When connecting two monitors via both HDMI and VGA in Extend Mode, the two external screens will display the same content.

Image: A laptop connected to an external 4K monitor through the Acer ODK390 USB C Hub, demonstrating 4K@30Hz screen casting.

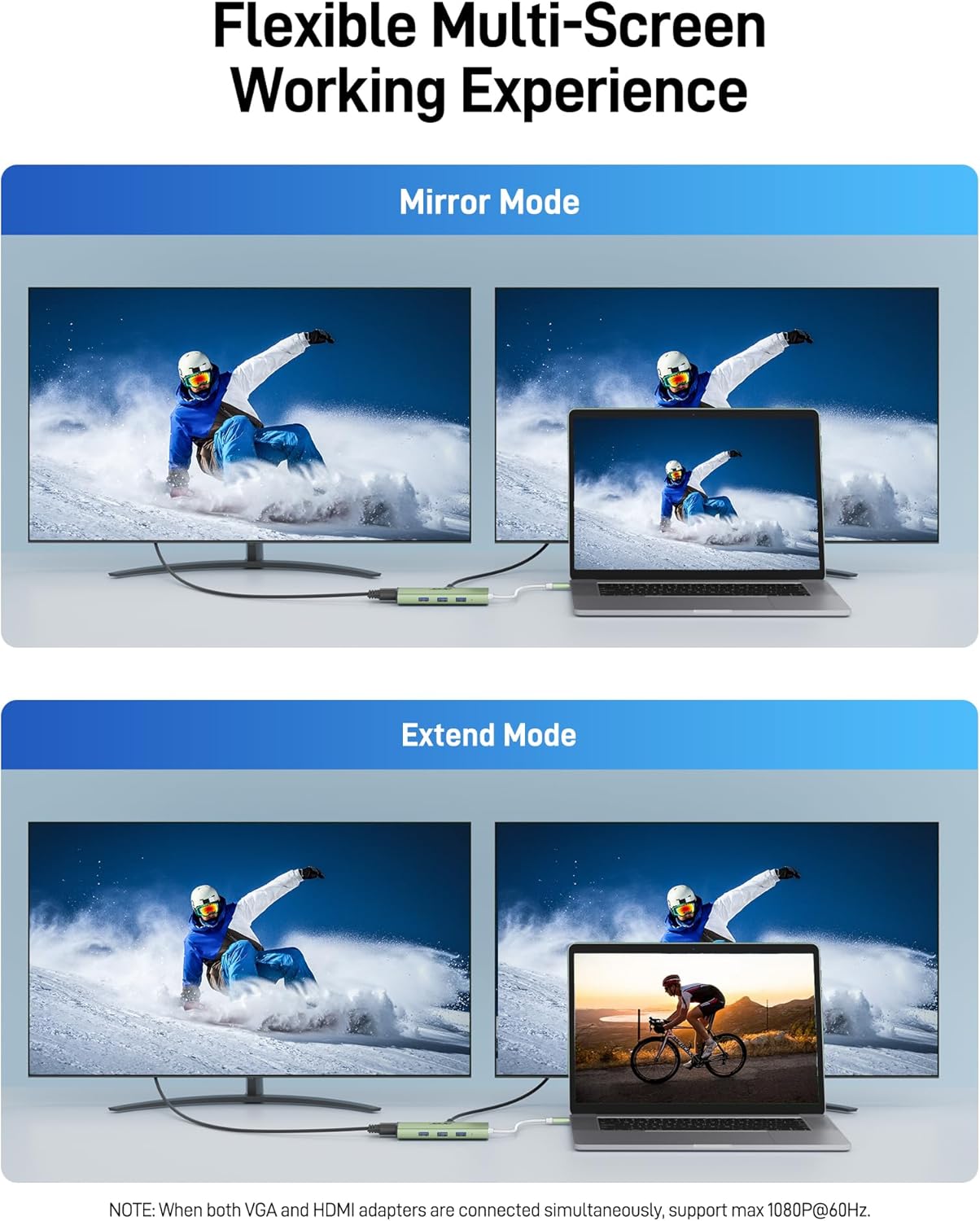

Image: A visual representation of a laptop connected to two external monitors, illustrating both Mirror Mode (displaying identical content) and Extend Mode (extending the desktop across screens) using the Acer ODK390 USB C Hub.

2.2 Мрежна повезаност

The Gigabit Ethernet port provides a stable and high-speed wired network connection (10/100/1000Mbps). This is ideal for online gaming, video conferencing, and large file трансфери.

Image: A laptop connected to an Ethernet cable through the Acer ODK390 USB C Hub, indicating a 1000Mbps high-speed connection.

2.3 Пренос података

• УСБ 3.0 портови: Utilize the three USB 3.0 ports for connecting various USB devices and transferring data at speeds up to 5 Gbps.
• Читач СД/ТФ картица: Access photos, videos, and other files directly from your SD or TF cards.

Image: The Acer ODK390 USB C Hub with multiple USB 3.0 ports connected to flash drives, illustrating 10x faster data transfer than USB 2.0.

Image: The Acer ODK390 USB C Hub with SD and TF cards inserted, showing its card reader functionality.

2.4 Испорука напајања

The PD 100W USB-C port allows for rapid charging of compatible devices, ensuring your laptop, tablet, or smartphone remains powered during use.

Image: The Acer ODK390 USB C Hub connected to a power adapter and a laptop, illustrating 100W Power Delivery pass-through charging.

3. Одржавање

To ensure the longevity and optimal performance of your Acer ODK390 USB C Hub, follow these maintenance guidelines:

• Чишћење: Use a soft, dry cloth to gently wipe the aluminum housing. Avoid liquid cleaners or abrasive materials that could damage the finish.
• Складиштење: Чвориште чувајте на хладном и сувом месту, даље од директне сунчеве светлости и екстремних температура.
• Руковање: Avoid dropping the device or subjecting it to strong impacts. The aluminum housing provides durability and aids in heat dissipation, but excessive force can cause damage.
• Нега каблова: Do not excessively bend or twist the integrated USB-C cable to prevent internal wire damage.

КСНУМКС. Решавање проблема

If you encounter issues with your Acer ODK390 USB C Hub, refer to the following common solutions:

• No Video Output via HDMI/VGA:
  • Ensure your USB-C device supports USB Type-C DP Alt Mode (Video transmission function).
  • Check all cable connections (USB-C to host, HDMI/VGA to display) are secure.
  • If using both HDMI and VGA in Extend Mode, note that the two external screens will display identical content.
• Slow Ethernet Speed:
  • Verify you are using a CAT6 or higher Ethernet cable to achieve 1Gbps speeds.
  • Ensure your network infrastructure (router, modem) supports Gigabit Ethernet.
• Device Not Charging via PD Port:
  • Confirm your USB-C power adapter is connected to the PD 100W port on the hub.
  • Ensure your host device supports USB-C Power Delivery.
  • Remember that the USB-C PD port on the hub is for charging input only and does not support data transfer.
• SD/TF Card Not Recognized:
  • Ensure the card is fully inserted into the correct slot.
  • Try the card in another device to confirm it is not damaged.
• Windows 7 or XP Driver Installation:
  • For Windows 7 or Windows XP systems, you may need to install a driver for the network port to function correctly. Refer to the "Installation Manual (PDF)" available in the product guides and documents section for instructions.
• Samsung DeX Mode:
  • If using with a Samsung Galaxy Tablet, ensure Samsung DeX Mode is turned on before connecting the hub.

5. Спецификације

6. Гаранција

The Acer ODK390 9-in-1 USB C Hub comes with a Двогодишња гаранција произвођача. Please retain your proof of purchase for any warranty claims. For more details, visit ввв.ацер.цом.

7. Подршка

For further assistance, technical support, or to explore other Acer products, please visit the official Acer webсајту или контактирајте корисничку подршку.

• Званична Acer продавница: Посетите Acer продавницу на Amazon-у
• Product Guides and Documents: Additional resources, including the "Installation Manual (PDF)" for specific driver installations, can be found on the product's Amazon page.
