Доми павиљон са тврдим кровом, 8x12 стопа, упутство за употребу

1. Увод

Thank you for choosing the Domi 8x12FT Wall-Mounted Hardtop Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

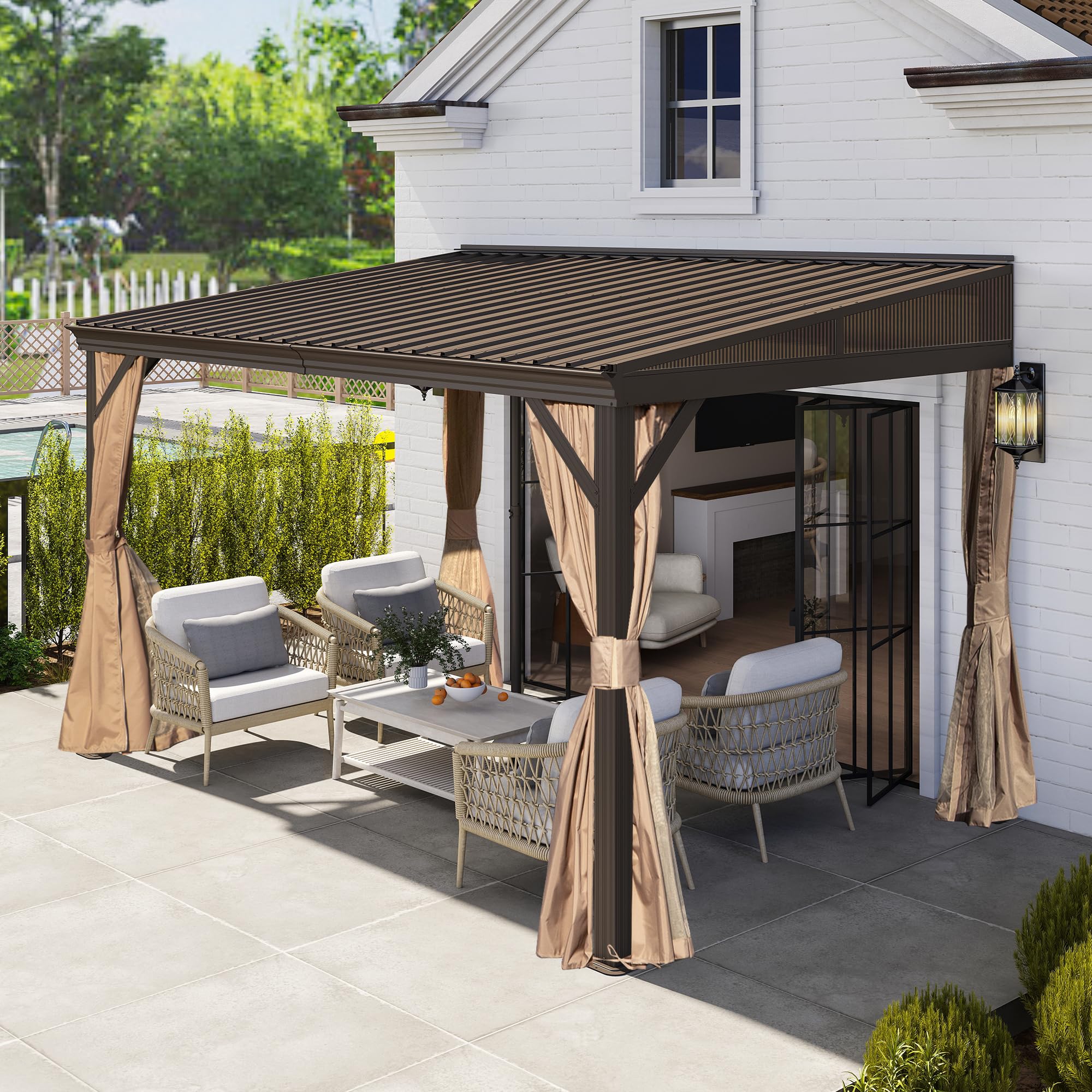

Image 1.1: The Domi 8x12FT Wall-Mounted Hardtop Gazebo provides a shaded outdoor living space.

This gazebo is designed to offer a comfortable outdoor oasis, providing protection from rain and UV rays. Its generous 8x12FT size offers ample room for various outdoor activities and gatherings, enhancing both aesthetics and functionality of your outdoor space.

2. Безбедносне информације

Your safety and the safety of others are paramount. Failure to follow these instructions may result in serious injury or damage to the product.

• Скупштина: This gazebo requires at least two to three adults for safe assembly. Ensure all parts are accounted for and in good condition before starting.
• Сидрење: The gazebo must be securely anchored to a solid, level surface using the provided hardware. Failure to properly anchor the structure can lead to instability and collapse in windy conditions.
• Временски услови: The gazebo is designed to withstand wind speeds up to 40 MPH and a snow load capacity of 22 LBS per square foot. In extreme weather conditions (heavy snow, strong winds, hurricanes), it is recommended to remove curtains and netting, and install the detachable support poles for enhanced stability.
• Нагомилавање снега: Regularly clear heavy snow accumulation from the roof to prevent structural damage. The detachable support poles are crucial for winter support.
• дренажа: Ensure the roof's drainage channels are clear of leaves and debris to prevent water accumulation and potential damage.
• Противпожарна безбедност: Keep all heat sources and open flames away from the gazebo's fabric components (curtains, netting).

Image 2.1: Detachable support poles must be installed during extreme weather conditions, such as heavy snow, to enhance stability.

3. Садржај пакета

Before assembly, unpack all components and verify against the parts list provided in your physical manual. Ensure all parts are present and undamaged. If any parts are missing or damaged, contact customer service immediately.

Типичне компоненте укључују:

• Aluminum Frame Components (beams, posts, connectors)
• Поцинковани челични кровни панели
• Privacy Curtains and Mosquito Netting
• Detachable Support Poles (for winter use)
• Anchoring Hardware (screws, bolts, expansion screws)
• Алати за монтажу (основни кључеви, шестоугаони кључеви)

4. Упутства за подешавање и монтажу

Assembly typically requires 2-3 people and can take several hours. Review the entire instruction manual before beginning. Organize all parts and hardware for easier access.

4.1 Припрема локације

• Choose a level, solid surface for installation, such as a concrete patio or wooden deck.
• Ensure adequate clearance around the gazebo for assembly and future use.
• The gazebo is designed to be wall-mounted. Identify a suitable wall for attachment, ensuring it can support the structure.

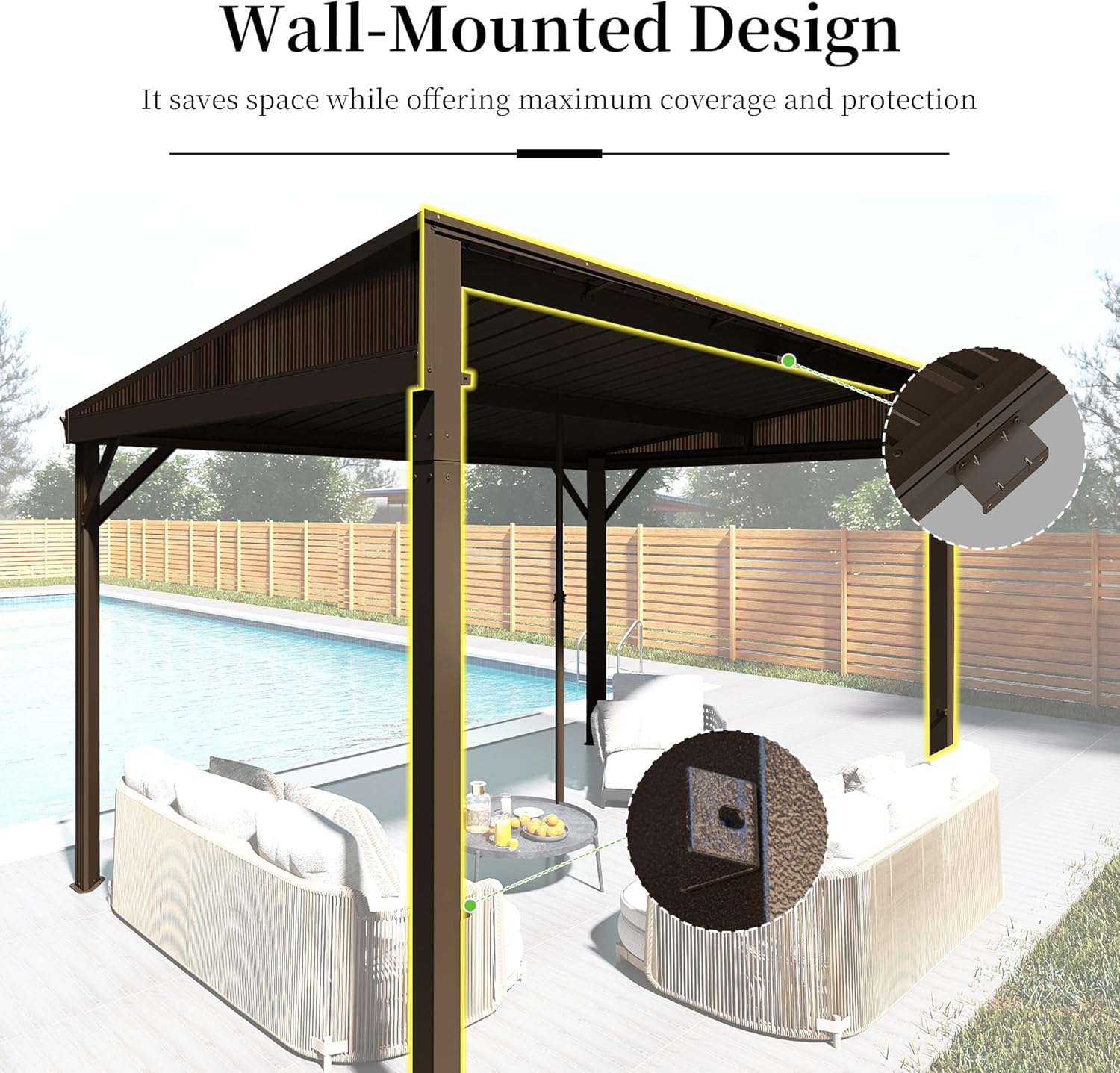

Image 4.1: The wall-mounted design saves space and provides maximum coverage. Ensure proper attachment to a sturdy wall.

4.2 Склапање оквира

• Assemble the main aluminum frame components according to the detailed diagrams in your physical manual. It is recommended to pre-assemble longer sections on the ground before lifting.
• Do not fully tighten all bolts until the entire frame is assembled and squared. This allows for minor adjustments.
• Attach the wall-mounted side of the frame to your chosen wall using appropriate hardware for your wall type.

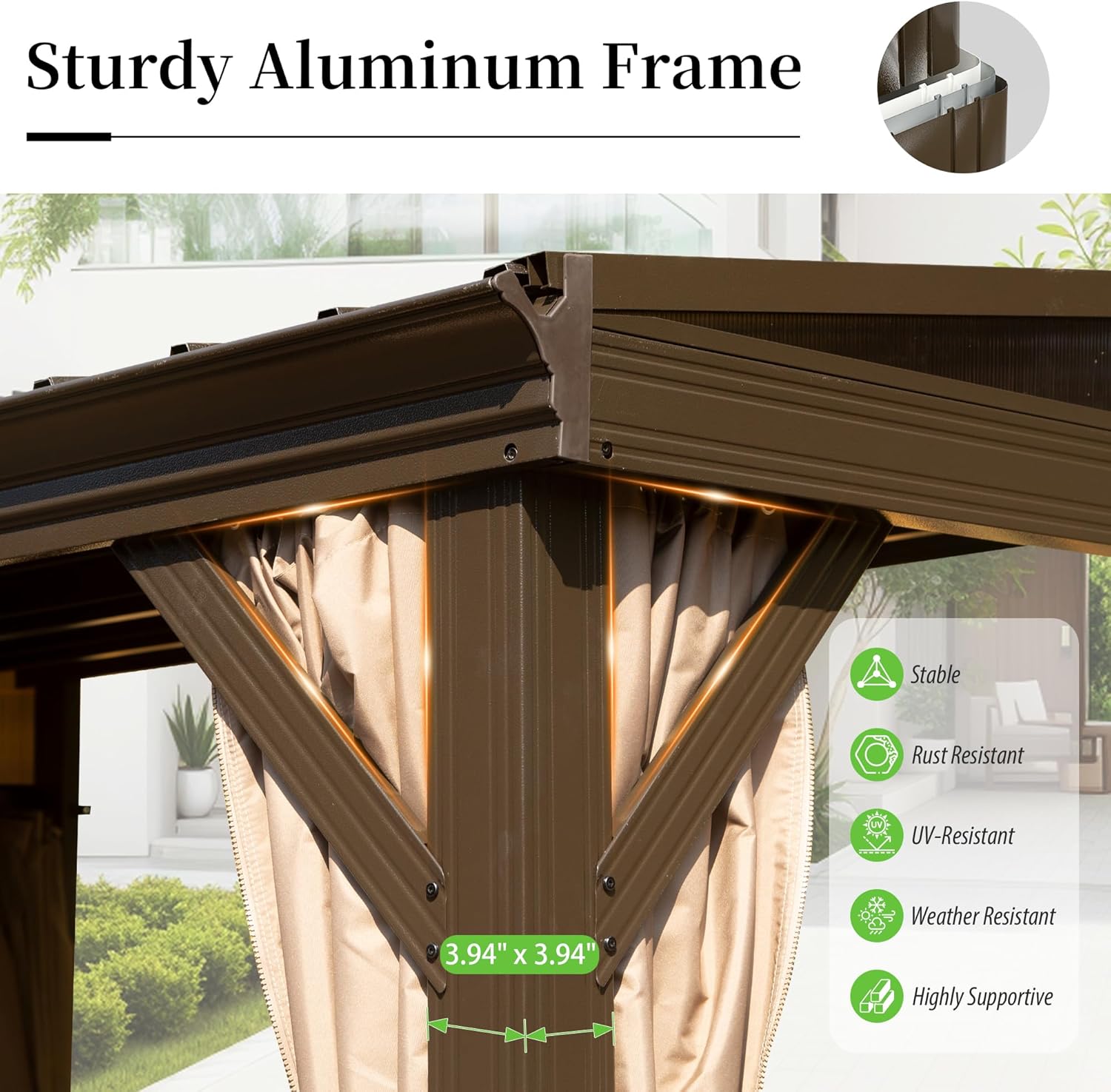

Image 4.2: The sturdy aluminum frame provides stability, rust resistance, and UV resistance.

4.3 Монтажа крова

• Carefully install the galvanized steel roof panels onto the assembled frame. Follow the sequence specified in your manual to ensure proper overlap and drainage.
• Ensure all roof screws are tightened as you go, especially for central pieces, as access may be limited later.
• The roof features a sloping design to prevent water puddling.

4.4 Anchoring the Gazebo

• Once the frame and roof are complete, securely anchor the gazebo's base plates to the ground. The pre-drilled anchoring bases are designed for easy installation.
• It is recommended to use expansion bolts for reinforcement, especially on concrete surfaces.

Image 4.3: The sturdy structure includes roofing reinforcement and pre-drilled anchoring bases for enhanced stability.

4.5 Постављање завеса и мрежа

• Install the inner mesh curtains and outer privacy curtains onto the double-track system.
• The mesh curtains provide mosquito protection while maintaining air circulation. The privacy curtains offer privacy and retain warmth.

5. Упутство за употребу

5.1 Коришћење завеса и мрежа

The gazebo features a double-track system for the inner mesh curtains and outer privacy curtains. These can be opened, closed, or tied back as needed to control airflow, privacy, and protection from insects or elements.

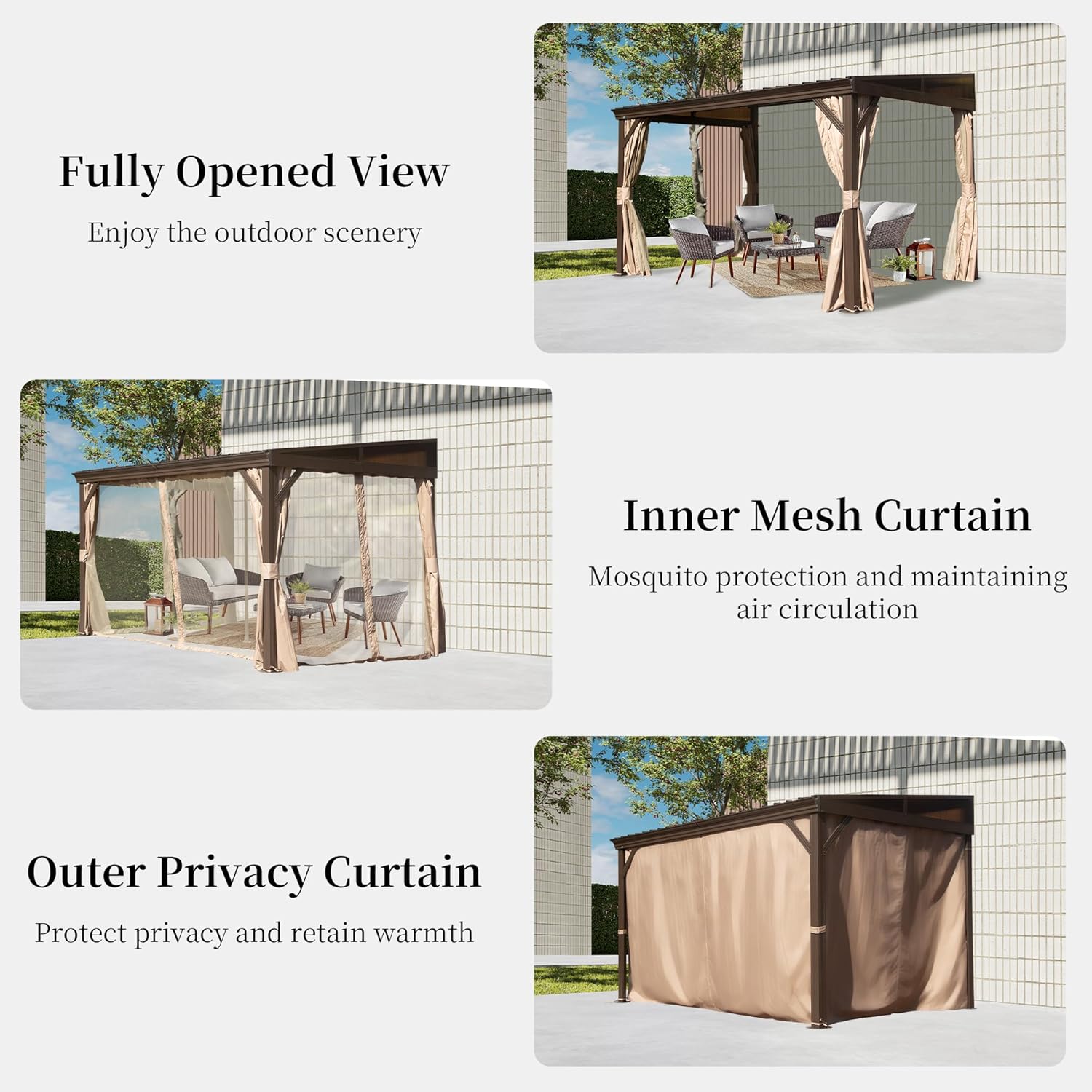

Image 5.1: The multi-functional curtains allow for a fully opened view, mosquito protection with mesh, or full privacy with outer curtains.

5.2 Detachable Support Poles

For enhanced stability during snowy or extremely windy conditions, install the provided detachable support poles. These poles are designed to provide additional structural integrity against heavy loads and strong gusts. Ensure they are properly secured according to the instructions in your manual.

6. Одржавање

Редовно одржавање ће продужити век трајања и изглед ваше павиљона.

• Чишћење: Clean the frame and roof panels with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Дренажа: Regularly inspect and clear the roof's drainage channels of leaves, branches, and other debris to ensure efficient water runoff and prevent pooling.
• Причвршћивачи: Периодично проверавајте све завртње и вијке да бисте били сигурни да су чврсто затегнути. По потреби поново затегните.
• Нега тканина: Clean curtains and netting according to their specific care instructions, typically using mild soap and water. Ensure they are completely dry before storing or folding to prevent mildew.
• Припрема за зиму: In areas with heavy snowfall, install the detachable support poles. Consider removing curtains and netting during prolonged periods of severe weather to prevent damage.

Image 6.1: The superior drainage system effectively prevents water accumulation. Regularly clear debris from the drainage channel.

КСНУМКС. Решавање проблема

Овај одељак се бави уобичајеним проблемима на које можете наићи.

• Gazebo feels unstable: Ensure all anchoring points are securely fastened to the ground and wall. Check all frame connections for tightness. Verify that the detachable support poles are installed if applicable for current weather conditions.
• Накупљање воде на крову: Inspect the drainage channels for blockages (leaves, debris). Clear any obstructions to allow water to flow freely. Ensure roof panels are correctly installed and overlapped.
• Curtains/Netting not sliding smoothly: Check the tracks for debris or obstructions. Clean the tracks and ensure the curtain hooks are properly seated.
• Gaps between components: During assembly, ensure all parts are aligned correctly before fully tightening fasteners. Minor adjustments may be possible by loosening and re-tightening connections.
• Damage from wind: Ensure the gazebo is properly anchored. In high winds, it is recommended to tie back or remove curtains and netting to reduce wind resistance.

8. Спецификације

Image 8.1: Key dimensions and performance specifications for the 8x12FT Wall-Mounted Hardtop Gazebo.

9. Гаранција и подршка

For warranty information, missing parts, or technical support, please contact Domi Outdoor Living customer service. Refer to the contact details provided in your product packaging or visit the official Domi Outdoor Living webсајту.

Произвођач: доми оутдоор ливинг
