1. Увод
This manual provides comprehensive instructions for the AUX DC Inverter Multi-Split Air Conditioner System, designed for efficient cooling and heating of multiple rooms. This system utilizes R-32 refrigerant and features advanced DC Inverter technology for optimal performance and energy savings. Please read this manual thoroughly before installation, operation, or maintenance to ensure correct usage and to prevent damage to the unit or injury to personnel.
2. Безбедносне информације
Always adhere to the following safety precautions to prevent electric shock, fire, injury, or damage to the unit:
- Installation must be performed by qualified and authorized personnel only, in accordance with national wiring regulations.
- Уверите се да напајање одговара спецификацијама уређаја.
- Не покушавајте сами да поправљате или модификујете уређај. Обратите се квалификованом сервисеру.
- Обезбедите правилно уземљење да бисте спречили струјни удар.
- Do not block the air inlet or outlet of the indoor or outdoor units.
- Држите децу даље од уређаја током рада.
- The refrigerant R-32 is mildly flammable. Handle with care and ensure proper ventilation during installation and servicing.
3. Садржај пакета

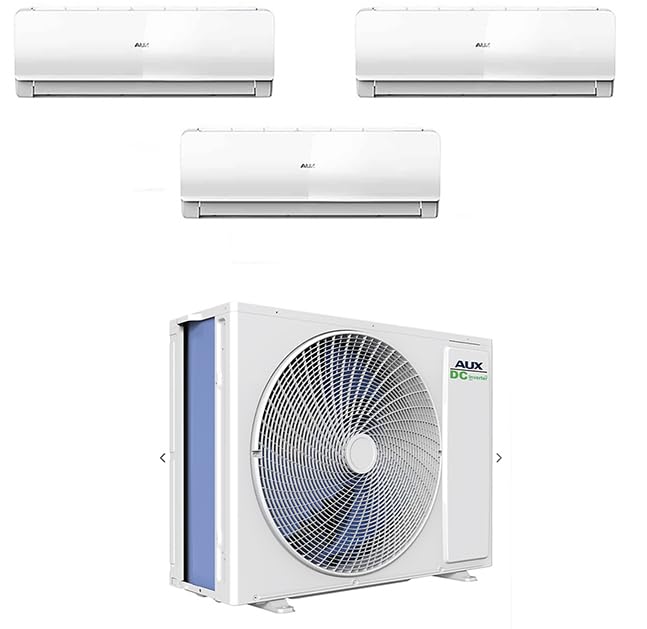

Upon unpacking, verify that all components are present and undamaged. The standard package for the AUX DC Inverter Multi-Split Air Conditioner System (Trial 12+12+12) typically includes:
- One (1) Outdoor Unit (Model: AM4-H28/4DR3C)
- Three (3) Indoor Units (e.g., 12000 BTU units, or a combination of 9000 BTU and 12000 BTU units as per your specific order)
- Three (3) Remote Controls for Indoor Units
- Упутство за употребу и упутство за инсталацију
- Mounting accessories for indoor units
Note: Specific indoor unit models and quantities may vary based on the purchased configuration.
4. Спецификације
The following table outlines the key technical specifications for the AUX DC Inverter Multi-Split Air Conditioner System:
| Феатуре | Спецификација |
|---|---|
| Бранд | АУКС |
| Модел спољне јединице | AM4-H28/4DR3C |
| Cooling Capacity (Total) | 29650 БТУ |
| Heating Capacity (Total) | 30776 БТУ |
| Повер Суппли | Single-phase 220-240V/1/50Hz |
| СЕЕР | 6.3 |
| СЦОП | 4.1 |
| Енергетска класа | A++A+ |
| Расхладно средство | Р-32 |
| Outdoor Unit Airflow | 3100 м³/х |
| Ниво звучног притиска спољашње јединице | 56 дБ |
| Operating Limit (Temperature) | -35°Ц до +55°Ц |
| Димензије спољне јединице (ДxШxВ) | 832 к 328 к 655 мм |
| Величина линије за течност | 1/4 инча |
| Gas Line Size | 3/8 инча |
| Максимална дужина линије | 70 метара |
| Maximum Single Line Length | 30 метара |
| Maximum Dislevel (Outdoor to Indoor) | 15 метара |
| Maximum Dislevel (Between Indoor Units) | 10 метара |
| Indoor Unit (9000 BTU) Cooling Capacity | 11260 БТУ |
| Indoor Unit (9000 BTU) Heating Capacity | 11260 БТУ |
| Indoor Unit (9000 BTU) Airflow | 800 м³/х |
| Indoor Unit (9000 BTU) Dimensions (LxWxH) | 792 к 200 к 285 мм |
| Indoor Unit (9000 BTU) Connections | 1/4 инча, 3/8 инча |
| Indoor Unit (9000 BTU) Drain Diameter | 16.5 мм |
| Indoor Unit (9000 BTU) Minimum Noise Level | 19 дБ |
| Indoor Unit (12000 BTU) Cooling Capacity | 12625 БТУ |
| Indoor Unit (12000 BTU) Heating Capacity | 12966 БТУ |
| Indoor Unit (12000 BTU) Airflow | 600 м³/х |
| Indoor Unit (12000 BTU) Dimensions (LxWxH) | 750 к 200 к 285 мм |
| Indoor Unit (12000 BTU) Connections | 1/4 инча, 3/8 инча |
| Indoor Unit (12000 BTU) Drain Diameter | 16.5 мм |
| Indoor Unit (12000 BTU) Minimum Noise Level | 19 дБ |
| Укупна тежина | 120 кг |
| Тип контроле | Ремоте Цонтрол |
5. Инсталација
Installation of this multi-split air conditioning system requires specialized knowledge and tools. It must be performed by certified HVAC technicians.
5.1 Опште смернице
- Избор локације: Choose a location for the outdoor unit that allows for adequate airflow and is away from direct sunlight or heat sources. Indoor units should be placed to ensure even air distribution.
- Монтажа: Securely mount indoor and outdoor units according to the provided installation diagrams.
- Цеви за расхладно средство: Connect the liquid and gas lines between the outdoor unit and each indoor unit. The system uses R-32 refrigerant, which operates at similar pressures to R410A. Ensure compatibility of tools (manifold gauge, leak detector, recovery unit) with R-32. R-32 is a pure gas, simplifying charging procedures compared to refrigerant mixtures.
- дренажа: Install condensate drain pipes with proper slope to ensure efficient water removal.
- Електричне инсталације: Connect the power supply and communication cables according to the wiring diagram. Ensure all connections are secure and properly insulated.
- Vacuuming and Charging: Evacuate the system to remove non-condensable gases and moisture. Charge with the correct amount of R-32 refrigerant.
For detailed installation steps, refer to the separate Installation Manual provided with the product.
6. Операција
Your AUX air conditioner system is controlled via a wireless remote control. Familiarize yourself with the remote control functions for optimal use.
6.1 Основни рад
- Укључивање/искључивање: Притисните дугме за напајање на даљинском управљачу да бисте укључили или искључили јединицу.
- Избор режима: Select desired operating mode (Cool, Heat, Fan, Dry, Auto) using the Mode button.
- Подешавање температуре: Use the temperature up/down buttons to set the desired room temperature.
- Брзина вентилатора: Adjust fan speed (Auto, Low, Medium, High) to your preference.
6.2 Напредне функције
- 24Х тајмер: This function allows you to set a specific time for the air conditioner to turn on or off within a 24-hour period.
- Осећам функцију: When activated, the remote control's built-in temperature sensor measures the ambient temperature and sends the data to the indoor unit, allowing the unit to adjust its operation for enhanced comfort around the remote control's location.
- Супер хлађење: Provides rapid cooling to quickly reach the desired temperature.
- Паметна функција: Pressing the 'Smart' button on the remote control enables the air conditioner to operate in the most comfortable mode based on the current room temperature, automatically adjusting settings.
- Функција спавања: Optimizes temperature and fan speed settings during sleep for comfort and energy efficiency.
- Wi-Fi контрола (опционо): If equipped with the optional Wi-Fi module, the system can be controlled remotely via a smartphone application. Refer to the Wi-Fi module manual for setup instructions.
7. Карактеристике
The AUX DC Inverter Multi-Split Air Conditioner System incorporates several advanced features for superior performance and user experience:
- Full DC Inverter Technology: Features a digital control signal, DC Inverter compressor, DC Inverter motors on both indoor and outdoor units, and an electronic expansion valve. This ensures low noise levels and high efficiency.
- DC Inverter Twin Rotary Compressor: The newly designed BLDC Inverter twin rotary compressor provides improved balance and reduced vibrations, leading to maximum quietness and excellent efficiency and energy savings.
- Electronic Expansion Valve: Precisely controls refrigerant flow for optimal system performance.
- Лов Волtagе Операција: The outdoor unit can operate within a wide voltage range (176V to 264V), ensuring stable performance even with voltagе флуктуације.
- Auto-diagnosis and Automatic Protection: The system can detect operational anomalies and activate protective measures.
- Грејање на ниској температури: Capable of providing effective heating even at outdoor temperatures as low as -15°C.
- Аутоматско одмрзавање: Automatically defrosts the outdoor unit coil to maintain heating efficiency in cold conditions.
- Поновно покретање на 8°C: A function that maintains a minimum temperature of 8°C to prevent freezing in unoccupied rooms during winter.
- Функција против буђи: After the air conditioner is turned off, the indoor fan continues to operate for 30 seconds to dry any condensation inside the indoor unit, preventing mold formation.
- Напредна филтрација: Includes an active carbon filter and a 4-in-1 filter system for improved air quality.
- Rubidium Magnet Compressor: Enhances efficiency and reduces power consumption through increased gas molecule compression.
- Optimized Heat Exchanger Design: The external heat exchanger is designed to maximize heat transfer, improving the refrigeration circuit's efficiency and preventing ice blockages. It also supports long-distance connections between units without reducing cooling capacity.
8. Одржавање
Regular maintenance ensures the longevity and efficient operation of your air conditioning system. Always turn off the power supply before performing any maintenance.
8.1 Indoor Unit Maintenance
- Чишћење филтера: Clean the air filters every two weeks or more frequently depending on usage and air quality. Remove filters, wash with lukewarm water, dry thoroughly, and reinsert.
- Чишћење површине јединице: Wipe the indoor unit's surface with a soft, damp крпа. Не користите јаке детерџенте или абразивна средства за чишћење.
- Функција против буђи: Utilize the built-in anti-mold function to keep the indoor coil dry.
8.2 Одржавање спољашње јединице
- Чишћење завојнице: Periodically check and clean the outdoor unit's coil to remove dust, leaves, and other debris that can obstruct airflow. This should ideally be done by a professional.
- Очистите препреке: Ensure that there are no obstructions around the outdoor unit that could impede airflow.
8.3 Професионално сервисирање
It is recommended to have your system professionally serviced at least once a year by a qualified technician. This includes checking refrigerant levels, electrical connections, and overall system performance.
КСНУМКС. Решавање проблема
Before contacting service personnel, review следећи уобичајени проблеми и њихова могућа решења:
| Проблем | Могући узрок | Решење |
|---|---|---|
| Јединица се не укључује | No power supply; Remote control batteries low; Circuit breaker tripped | Check power connection; Replace batteries; Reset circuit breaker |
| Недовољно хлађење/грејање | Dirty air filters; Blocked outdoor unit; Incorrect mode/temperature setting; Low refrigerant | Clean filters; Clear obstructions; Adjust settings; Contact technician for refrigerant check |
| Необична бука | Loose parts; Fan obstruction; Refrigerant flow noise (normal) | Check for loose parts; Clear obstructions; If persistent or loud, contact technician |
| Цурење воде из унутрашње јединице | Blocked drain pipe; Improper installation | Clear drain pipe; Contact technician for inspection |
| Даљински управљач не ради | Batteries low/dead; Obstruction between remote and unit | Replace batteries; Ensure clear line of sight |
The system features an auto-diagnosis function. If an error code appears on the display, consult the detailed troubleshooting section in the full user manual or contact customer support with the error code.
10. Гаранција и подршка
Your AUX DC Inverter Multi-Split Air Conditioner System is covered by a manufacturer's warranty.
- Factory Warranty: A 5-year factory warranty is provided for certain components.
- Гаранција на производ: A general 2-year product warranty applies.
Please refer to your purchase documentation for specific warranty terms and conditions, as these may vary by region and retailer. For warranty claims, technical support, or service requests, please contact your authorized dealer or the AUX customer service department.
