Mercusys ME80X AX3000 WiFi 6 Range Extender User Manual

Увод

This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your Mercusys ME80X AX3000 WiFi 6 Range Extender. Please read this guide carefully to ensure optimal performance and proper use of your device.

Шта је у кутији

• Mercusys ME80X AX3000 WiFi 6 Range Extender
• Quick Installation Guide (not included in this digital manual, but typically provided)

Ensure all components are present and in good condition. If any item is missing or damaged, please contact customer support.

Кључне карактеристике

• Dual Band AX3000 Speeds: Up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz.
• WiFi 6 технологија: Enhances speed, efficiency, and capacity for a better network experience.
• Гигабитни Етхернет порт: Provides fast wired connections for devices like PCs, IPTVs, and gaming consoles.
• Универзална компатибилност: Works with any standard Wi-Fi router.
• One-Touch WPS Setup: Easy expansion of Wi-Fi coverage by pressing the WPS button.
• Двоструки режими рада: Functions as a Range Extender (RE) or an Access Point (AP).
• Контрола паметне апликације: Manage your network via the MERCUSYS app on iOS or Android devices.
• Компатибилно са EasyMesh-ом: Create a unified mesh network for seamless roaming.

Производ је завршенview

The Mercusys ME80X is designed to extend your existing Wi-Fi coverage, eliminating dead zones and providing strong, reliable wireless connectivity throughout your home or office.

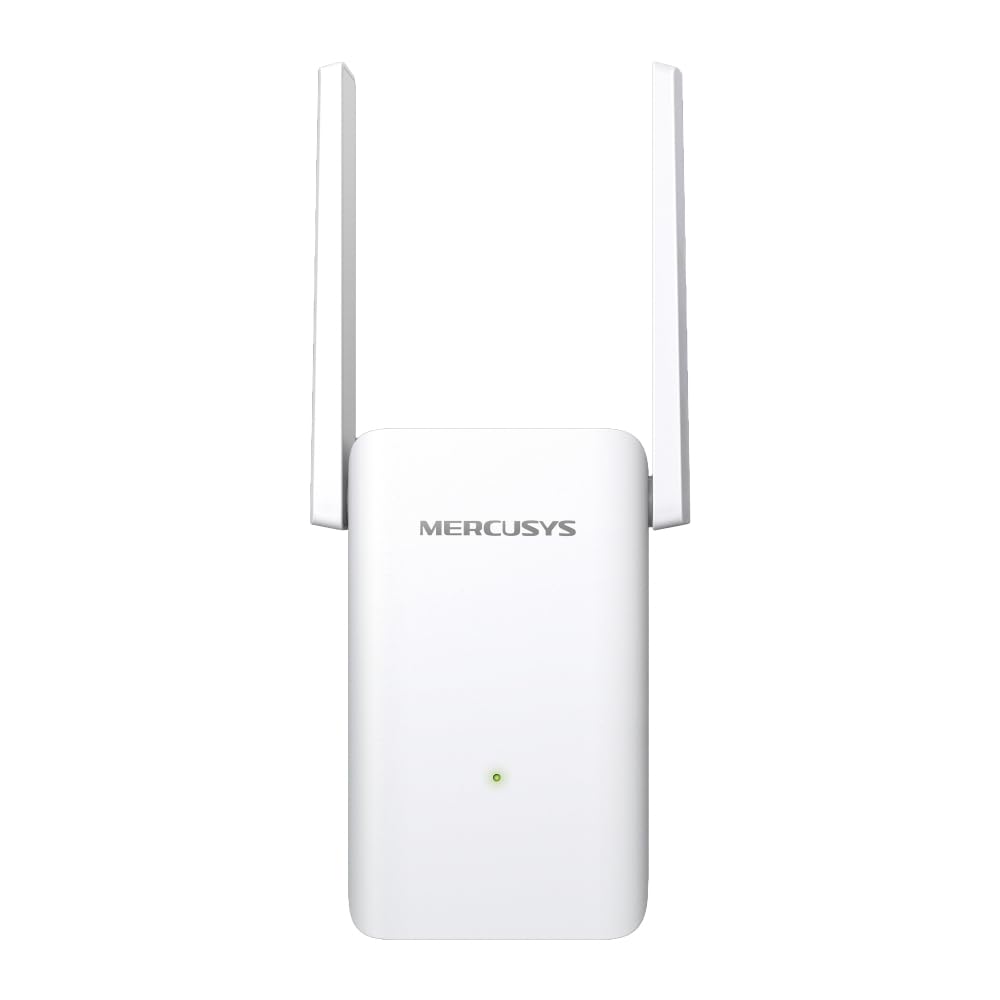

Слика: Фронт view of the Mercusys ME80X AX3000 WiFi 6 Range Extender, showing the MERCUSYS logo and an LED indicator.

Image: Diagram highlighting key features of the ME80X, including WiFi 6, Gigabit Ethernet, adjustable high-gain antennas, AX3000 speeds, compatibility with any router, built-in Access Point mode, EasyMesh, and MERCUSYS App Control.

Image: Visual representation of WiFi 6 benefits, showing 2.4 GHz at 574 Mbps and 5 GHz at 2402 Mbps, emphasizing higher speed, larger capacity, and ultra-low latency.

Сетуп

There are several methods to set up your Mercusys ME80X Range Extender. Choose the method that best suits your needs.

Метод 1: WPS (Заштићено подешавање Wi-Fi мреже)

WPS is the quickest way to extend your Wi-Fi network if your router supports it.

1. Укључите ME80X у електричну утичницу близу рутера.
2. Wait for the LED on the ME80X to turn solid red or orange.
3. Притисните WPS дугме на главном рутеру.
4. У року од два минута, притисните WPS дугме на ME80X.
5. The LED on the ME80X should change to solid green, indicating a successful connection.
6. Relocate the ME80X to an optimal location between your router and the Wi-Fi dead zone. Ensure the LED remains solid green for a good connection.

Image: Diagram illustrating the one-touch WPS setup process, showing pressing the WPS button on both the router and the ME80X, and the LED indicator for connection status (green for good, orange for too far).

Метод 2: Преко MERCUSYS апликације

The MERCUSYS app provides an intuitive way to set up and manage your extender.

1. Download the MERCUSYS app from the App Store (iOS) or Google Play (Android).
2. Укључите ME80X у електричну утичницу близу рутера.
3. Open the MERCUSYS app and follow the on-screen instructions to add your new device.
4. Апликација ће вас водити кроз повезивање екстендера са вашом постојећом Ви-Фи мрежом.
5. Once connected, relocate the ME80X to an optimal location.

Метод 3: Преко Web Бровсер

For advanced configuration or if WPS/App setup is not preferred.

1. Укључите ME80X у електричну утичницу близу рутера.
2. Connect your computer or mobile device to the ME80X's Wi-Fi network (e.g., "MERCUSYS_Extender").
3. Отвори а web претраживач и тип мвлогин.нет or the default IP address (check the label on the device or quick start guide) into the address bar.
4. Креирајте лозинку за пријаву када се то од вас затражи.
5. Пратите упутства на екрану да бисте изабрали мрежу домаћина и конфигурисали екстендер.
6. Relocate the ME80X to an optimal location.

Access Point (AP) Mode Setup

In Access Point mode, the ME80X connects to your router via an Ethernet cable to create a new Wi-Fi access point.

1. Укључите ME80X у електричну утичницу.
2. Connect an Ethernet cable from your main router's LAN port to the Gigabit Ethernet port on the ME80X.
3. Access the ME80X's web management page (as described in Method 3).
4. Navigate to the operating mode settings and select "Access Point Mode".
5. Configure the Wi-Fi network name (SSID) and password for the new access point.
6. Save the settings. The ME80X will now function as a wired access point.

Image: The ME80X plugged into a wall outlet, connected via Ethernet cable to a laptop, demonstrating its use in Access Point mode to provide Wi-Fi to nearby devices.

EasyMesh Setup

The ME80X is EasyMesh compatible, allowing it to form a unified mesh network with a compatible EasyMesh router. This provides seamless roaming and a single Wi-Fi network name.

Note: This process requires your main router to also support EasyMesh and have the feature enabled.

1. Factory Reset ME80X: If the ME80X has been previously set up, perform a factory reset by holding the Reset/WPS button for approximately 10-20 seconds until the LED behavior changes.
2. Enable EasyMesh on Router: Пријавите се на свој web-based router management interface (not through an app). Locate and enable the EasyMesh feature, usually found in the wireless or system settings.
3. Почетни пласман: Plug the ME80X into an electrical outlet next to your router.
4. Initiate WPS Pairing: Once the ME80X's LED turns orange, press the WPS button on your router, then immediately press the WPS button on the ME80X.
5. Add Mesh Device: On your router's web management interface, scroll to the bottom (or relevant section) and select "Add Mesh" or "Тражи WPS connection".
6. Потврда: The router should detect and automatically set up the ME80X as part of the mesh network. The ME80X's LED should turn solid green.
7. Verify Network: Confirm that there is no separate "ME80X_Ext" network visible. Only your main home network SSID should be broadcast.
8. Премести: You can now unplug the ME80X and relocate it to its permanent desired location within your home. Ensure the LED remains solid green for optimal mesh performance.

Управљање проширивачем домета

Разумевање ЛЕД индикатора

The LED on the front of the ME80X provides important status information:

• Стално зелено: The extender is connected to the router and is in a good location.
• чврста наранџаста: The extender is connected to the router but is too far from it. Relocate the extender closer to the router.
• Пуно црвено: Ekstender nije povezan sa ruterom.
• Flashing Green/Orange: ВПС упаривање је у току.
• Искључено: The extender is powered off or experiencing an error.

Relocating the Extender

After initial setup, you can unplug the extender and move it to a new location. The ideal location is halfway between your router and the Wi-Fi dead zone. Ensure the LED turns solid green after relocation to confirm a good connection.

Image: Diagram showing a house with a router and the ME80X extender placed strategically to extend Wi-Fi coverage to previously unreachable areas.

Image: The Mercusys ME80X plugged into a wall outlet in a modern living room setting, demonstrating its discreet placement.

Одржавање

Ажурирања фирмвера

Regularly check for firmware updates to ensure optimal performance, security, and access to new features. You can usually find firmware updates on the official MERCUSYS website or through the MERCUSYS app.

1. Visit the official MERCUSYS support website for your model (ME80X).
2. Преузмите најновији фирмвер file.
3. Access the ME80X's web management page (mwlogin.net).
4. Navigate to System Tools > Firmware Upgrade and follow the instructions to upload the new firmware.
5. Важно: Do not power off the device during the firmware upgrade process.

Чишћење

To maintain proper airflow and prevent overheating, periodically clean the exterior of the extender. Use a soft, dry cloth. Do not use liquid cleaners or aerosols.

Решавање проблема

Нема приступа интернету након повезивања са екстендером

• Ensure the extender's LED is solid green, indicating a good connection to the router.
• Проверите да ли ваш главни рутер има приступ интернету.
• Покушајте да поново покренете и рутер и екстендер.
• If using a static IP on your device, ensure it's compatible with the extender's network.

Мала брзина или честа прекидања везе

• Relocate the extender closer to your main router. The LED should be solid green.
• Ensure there are no major obstructions (thick walls, metal objects, large appliances) between the extender and your devices, or between the extender and the router.
• Check for interference from other wireless devices (e.g., cordless phones, microwaves).
• Update the firmware of both your router and the extender.
• If using EasyMesh, ensure the setup was completed correctly and the extender is integrated into the mesh.

Подешавање WPS-а не успева

• Ensure your router supports WPS and that it is enabled.
• Press the WPS button on the router and extender within two minutes of each other.
• Покушајте web browser or app setup method instead.

How to Factory Reset the ME80X

If you encounter persistent issues or forget your login password, a factory reset can restore the extender to its default settings.

1. With the extender powered on, locate the Reset/WPS button (often a small pinhole or combined with WPS).
2. Press and hold the button for approximately 10-20 seconds until the LED flashes rapidly or changes color, then release.
3. The extender will restart with factory default settings. You will need to set it up again.

Спецификације

Гаранција и подршка

За информације о гаранцији и техничку подршку, обратите се званичном MERCUSYS-у. webсајт или директно контактирајте њихову корисничку службу. Сачувајте рачун за куповину за потребе гаранције.

Званични представник MERCUSYS-а Webсајт: ввв.мерцусис.цом
