1. Увод
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Bosch SMV2HVX06E Serie 2 Smart Built-in Dishwasher. Please read these instructions carefully before using the appliance for the first time and keep them for future reference.
Image 1.1: The Bosch SMV2HVX06E Serie 2 Smart Built-in Dishwasher.
2. Безбедносне информације
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and injury to persons. This appliance is intended for domestic use only.
- електрична безбедност: Ensure the appliance is properly grounded. Do not use extension cords or adapters. Disconnect power before servicing.
- Безбедност воде: Ensure water connections are secure to prevent leaks. Do not operate if there is a water leak.
- Безбедност деце: Keep children away from the dishwasher when it is operating. Detergents can cause chemical burns.
- Учитавање: Пуњајте оштре предмете (ножеве, виљушке) дршкама нагоре да бисте спречили повреде. Не преоптерећујте машину за прање судова.
- Одржавање: Only perform maintenance as described in this manual. For complex repairs, contact authorized service personnel.
3. Карактеристике производа
The Bosch SMV2HVX06E dishwasher offers a range of features designed for convenience and efficiency:
- 14 места за постављање: Ample capacity for larger households.
- Customizable Baskets: Flexible loading options with foldable racks and removable glass supports in both upper and lower baskets.
- Third Cutlery Basket: A dedicated top-level basket for cutlery, optimizing space in the lower basket.
- Floor Light Operation Indicator: A red LED light projected onto the floor indicates when the dishwasher is running.
- Програми: 5 wash programs (Eco 50 °C, Auto 45-65 °C, Intensive 70 °C, Express 65 °C, Favorite) and 4 special functions.
- Quiet and Efficient Motor: The brushless EcoSilence Drive motor reduces noise while optimizing energy and water consumption.
- Smart Dishwasher (Home Connect): Manage your dishwasher remotely, customize wash programs, and download new ones via the intuitive Home Connect app.
- Низак ниво буке: Ради тихо, бука је само 46 dB.
Слика 3.1: Унутрашњост view with customizable baskets.
Image 3.2: Third cutlery basket.
Image 3.3: Floor Light Operation Indicator.
Image 3.4: Rackmatic feature for adjustable upper basket.
4. Инсталација и подешавање
Proper installation is crucial for the performance and longevity of your dishwasher. Refer to the detailed installation instructions provided with the appliance for specific steps.
4.1 Димензије и постављање
The dishwasher is designed for full integration into your kitchen cabinetry. Ensure sufficient space and proper ventilation.
- Димензије производа (ВкШкД): 81.5 цм x 59.8 цм x 55 цм.
- Тип инсталације: Built-in (fully integrated).
- Напомена: The door panel is not included and must be supplied separately to match your kitchen design.
Image 4.1: Detailed installation dimensions (in mm).
4.2 Електрични и водоводни прикључци
Ensure that electrical and water connections are performed by a qualified professional according to local regulations.
- Волtage: 230 Волтс.
- Укључене компоненте: Power Cord, Inlet Hose, Drain Hose.
5. Операција
Operating your Bosch SMV2HVX06E dishwasher is straightforward. The control panel is located on the top edge of the door.

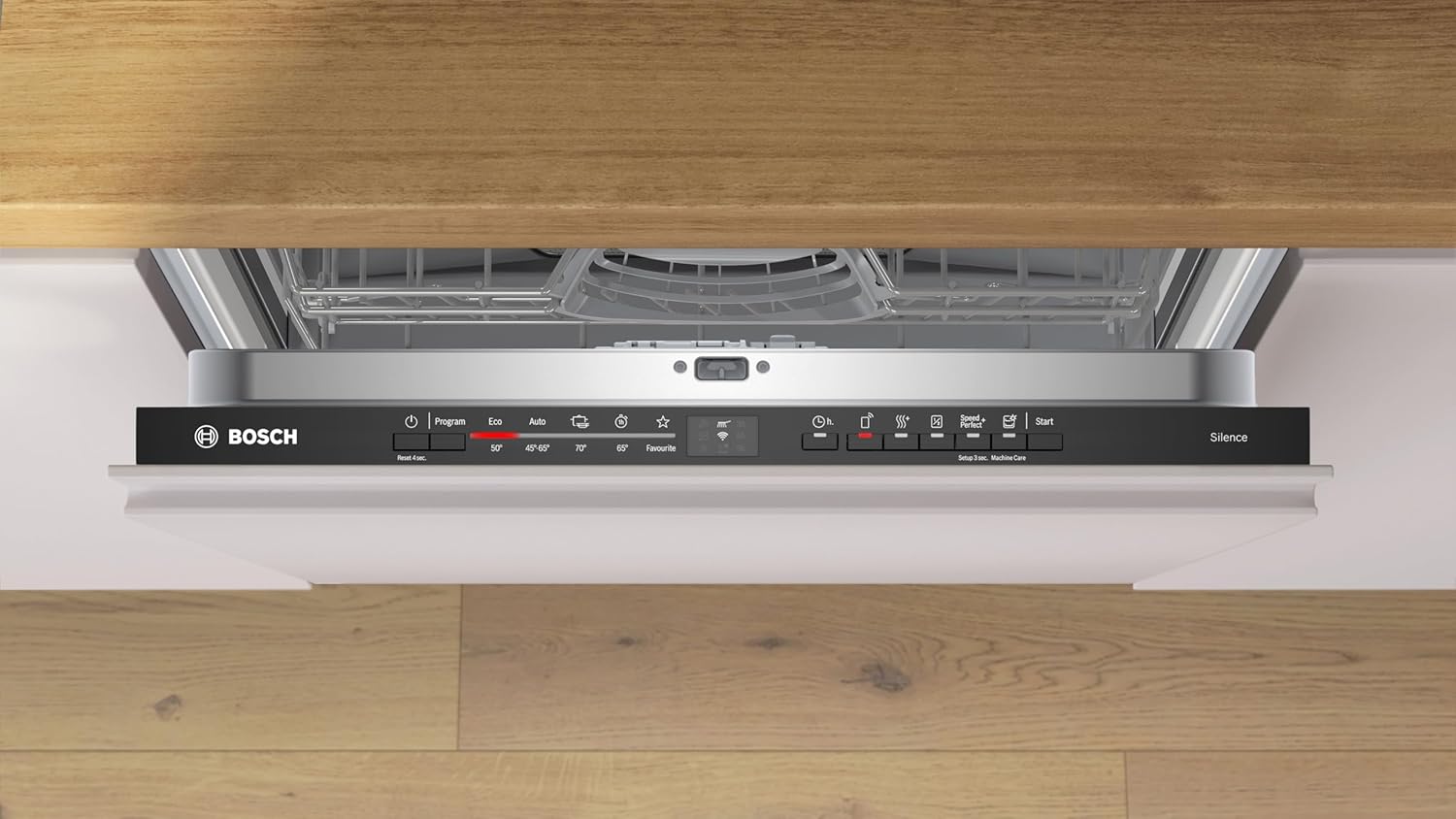

Image 5.1: Dishwasher control panel.
5.1 Пуњење машине за прање судова
Правилно пуњење осигурава оптималне резултате прања и спречава оштећење посуђа.
- Веће, јако запрљане предмете ставите у доњу корпу.
- Ставите чаше, шоље и мање предмете у горњу корпу.
- Use the third cutlery basket for forks, spoons, and knives, ensuring sharp ends face downwards.
Слика 5.2: Примерample of lower basket loading.
Слика 5.3: Примерample of upper basket loading.
5.2 Избор програма
Select the appropriate program based on the type and soil level of your dishes. Refer to the program table in your full user manual for detailed descriptions.
5.3 Smart Start Feature
The Smart Start feature, accessible via the Home Connect app, allows the dishwasher to automatically select the best time to run based on renewable energy availability or lower electricity tariffs. This optimizes energy consumption and reduces costs.
Video 5.4: Demonstration of the Smart Start feature for optimized energy use.
6. Одржавање
Regular maintenance helps keep your dishwasher performing efficiently.
- Чишћење филтера: Regularly check and clean the filter system at the bottom of the dishwasher to prevent blockages and ensure effective cleaning.
- Чишћење прскалица: Ensure the spray arm nozzles are not blocked. Remove and clean if necessary.
- Додавање соли и средства за испирање: Monitor the indicator lights for dishwasher salt and rinse aid and refill as needed.
- Спољно чишћење: Обришите спољашњост меком крпом, дamp тканина. Немојте користити абразивна средства за чишћење.
Image 6.1: Bottom spray arm and filter area.
КСНУМКС. Решавање проблема
Ако наиђете на проблеме са машином за прање судова, погледајте следеће уобичајене савете за решавање проблема пре него што контактирате сервис.
- Машина за прање судова се не укључује: Check if the door is fully closed, the power cord is plugged in, and the circuit breaker has not tripped.
- Посуђе није чисто: Ensure spray arms are not blocked, filters are clean, and dishes are loaded correctly without blocking water flow. Check detergent dispenser.
- Вода не одлази: Check the drain hose for kinks or blockages, and ensure the filter system is clean.
- Необични звуци: Check for foreign objects in the pump area or spray arms. Ensure dishes are not rattling against each other.
For more detailed troubleshooting, refer to the comprehensive guide in your full user manual or the Home Connect app.
8. Спецификације
| Спецификација | Валуе |
|---|---|
| Бранд | Босцх |
| Врста инсталације | Уграђено (потпуно интегрисано) |
| Димензије производа (ДкШкВ) | 55П к 59.8Ш к 81.5В цм |
| Капацитет | 14 Подешавања места |
| Тип контроле | Притисните дугме |
| Ниво буке | 46 децибела |
| Укључене компоненте | Power Cord, Cutlery Basket, User Manual, Inlet Hose, Drain Hose |
| Тежина артикла | 35.7 килограма |
| Волtage | 230 Волтс |
Image 8.1: EU Energy Label for SMV2HVX06E.
Image 8.2: Regulatory information table.
9. Гаранција и подршка
For warranty information, service requests, or technical support, please refer to the warranty card included with your appliance or visit the official Bosch webсајт. Сачувајте рачун као доказ о куповини.
You can also find additional support and resources through the Home Connect app.
