Razer Viper V3 Pro SE Wireless Gaming Mouse Instruction Manual

1. Увод

The Razer Viper V3 Pro SE is a high-performance wireless gaming mouse designed for precision and speed. This manual provides essential information for its proper setup, operation, and maintenance.

Image: The Razer Viper V3 Pro SE Wireless Gaming Mouse in black, showcasing its symmetrical design.

Кључне карактеристике:

• Ултра лаган дизајн од 54 г: Engineered for swift and precise movements.
• Focus Pro 35K Optical Sensor Gen-2: Offers up to 35,000 DPI with 99.8% resolution accuracy.
• HyperSpeed Wireless: Provides ultra-responsive, low-latency performance with a 1000 Hz polling rate dongle.
• Optical Mouse Switches Gen-3: Features a 90-million click lifespan and 0.2 ms actuation speed.
• Up to 95 Hours of Battery Life: Extended usage for long gaming sessions.
• Smooth-Touch Finish: Designed for enhanced grip and comfort.

2. Подешавање

2.1 What's in the Box:

• Razer Viper V3 Pro SE Wireless Gaming Mouse
• HyperSpeed Wireless Dongle + USB Dongle Adapter
• Кабл УСБ типа А до УСБ типа Ц
• Водич за важне информације о производу

2.2 Initial Connection:

1. Connect the HyperSpeed Wireless Dongle to an available USB-A port on your computer.
2. Укључите миш помоћу прекидача за напајање који се налази на доњој страни.
3. The mouse should automatically pair with the dongle.

Image: The HyperSpeed Wireless Dongle and USB Type A to USB Type C Cable included with the mouse.

2.3 Charging the Mouse:

Connect the USB Type A to USB Type C cable to the front of the mouse and to a USB-A port on your computer or a USB charger. The mouse features an internal battery with up to 95 hours of life.

2.4 Software Installation (Razer Synapse):

For full customization and optimization, download and install the Razer Synapse software from the official Razer webсајт. Овај софтвер вам омогућава да:

• Прилагодите подешавања DPI-ја.
• Remap buttons.
• Configure polling rates.
• Креирајте прилагођени проfiles.

Video: An unboxing video demonstrating the contents and initial setup of the Razer Viper V3 Pro SE.

3. Управљање мишем

3.1 Basic Functions:

• Леви клик: Примарна акција.
• Десни клик: Секундарна акција.
• Точак за померање: Померање горе/доле, клик средњим тастером миша.
• Бочна дугмад: Default to forward/back, customizable via Razer Synapse.
• Power/DPI Button (Underside): Toggles power and cycles through preset DPI stagес.

Image: The underside of the Razer Viper V3 Pro SE, highlighting the power switch and DPI cycle button.

3.2 DPI Adjustment:

The mouse features a Focus Pro 35K Optical Sensor Gen-2, allowing for precise tracking. You can adjust the DPI (Dots Per Inch) sensitivity:

• У лету: Press the Power/DPI button on the underside to cycle through preset DPI stagес.
• Прилагођавање: Use Razer Synapse to set specific DPI levels and assign them to buttons or profiles.

Image: A visual representation of the Razer Focus Pro 35K Optical Sensor Gen-2, detailing its 35,000 DPI, 99.8% resolution accuracy, 70G max acceleration, and 750 IPS max speed.

3.3 HyperSpeed Wireless:

The Razer HyperSpeed Wireless technology ensures a stable and responsive connection. The included dongle supports a 1000 Hz polling rate. For higher polling rates (up to 8000 Hz), a separate Razer HyperPolling Wireless Dongle is required.

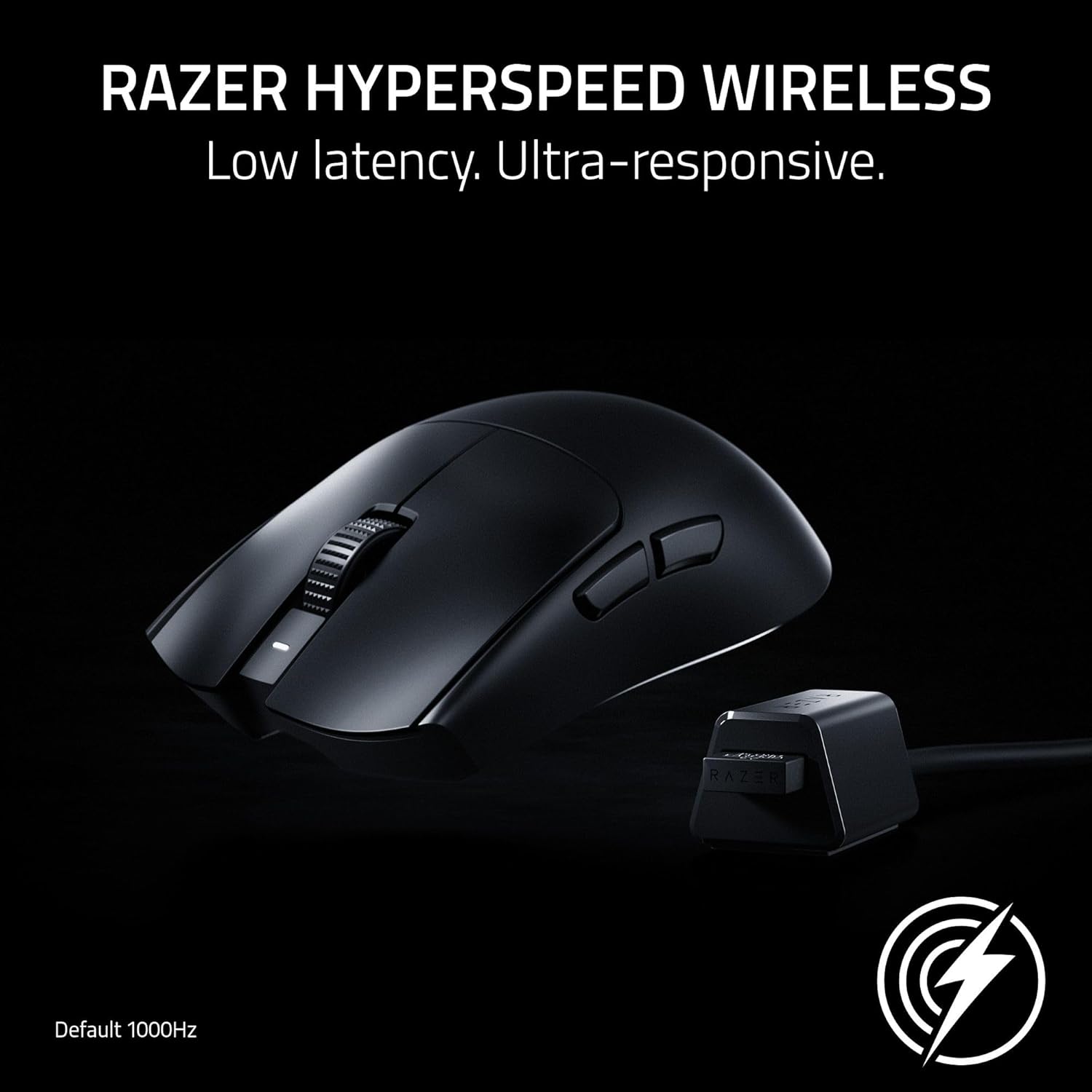

Image: The Razer Viper V3 Pro SE mouse positioned next to its HyperSpeed Wireless dongle, illustrating the wireless connection.

Video: A showcase video highlighting the features and performance of the Razer Viper V3 Pro SE.

4. Одржавање

4.1 Чишћење:

Да бисте одржали оптималне перформансе, редовно чистите миш. Користите меку крпу која не оставља влакна, благо натопљенуampИсперите водом или благим раствором за чишћење. Избегавајте јаке хемикалије или абразивне материјале.

4.2 Нега батерије:

The mouse has a built-in rechargeable battery. To prolong battery life:

• Избегавајте често потпуно пражњење батерије.
• Пуните миш када је индикатор батерије низак.
• Чувајте миш на хладном и сувом месту када га не користите дуже време.

Image: A hand operating the Razer Viper V3 Pro SE mouse on a gaming mat, emphasizing its long battery life.

КСНУМКС. Решавање проблема

5.1 Connectivity Issues:

• Ensure the HyperSpeed Wireless Dongle is securely plugged into a USB-A port.
• Verify the mouse is powered on.
• Try plugging the dongle into a different USB port or a different computer to isolate the issue.
• If issues persist, try re-pairing the mouse with the dongle using Razer Synapse.

5.2 Tracking Problems:

• Очистите оптички сензор на доњој страни миша.
• Уверите се да користите миш на одговарајућој површини (препоручује се подлога за миш).
• In Windows mouse settings, disable "Enhance pointer precision" for optimal accuracy.
• Calibrate the mouse surface in Razer Synapse for improved tracking performance.

5.3 Battery Not Charging:

• Check the USB Type C cable for damage and ensure it's properly connected.
• Пробајте други УСБ порт или адаптер за пуњење.
• Ensure the mouse is not in an extremely cold or hot environment, which can affect charging.

6. Спецификације

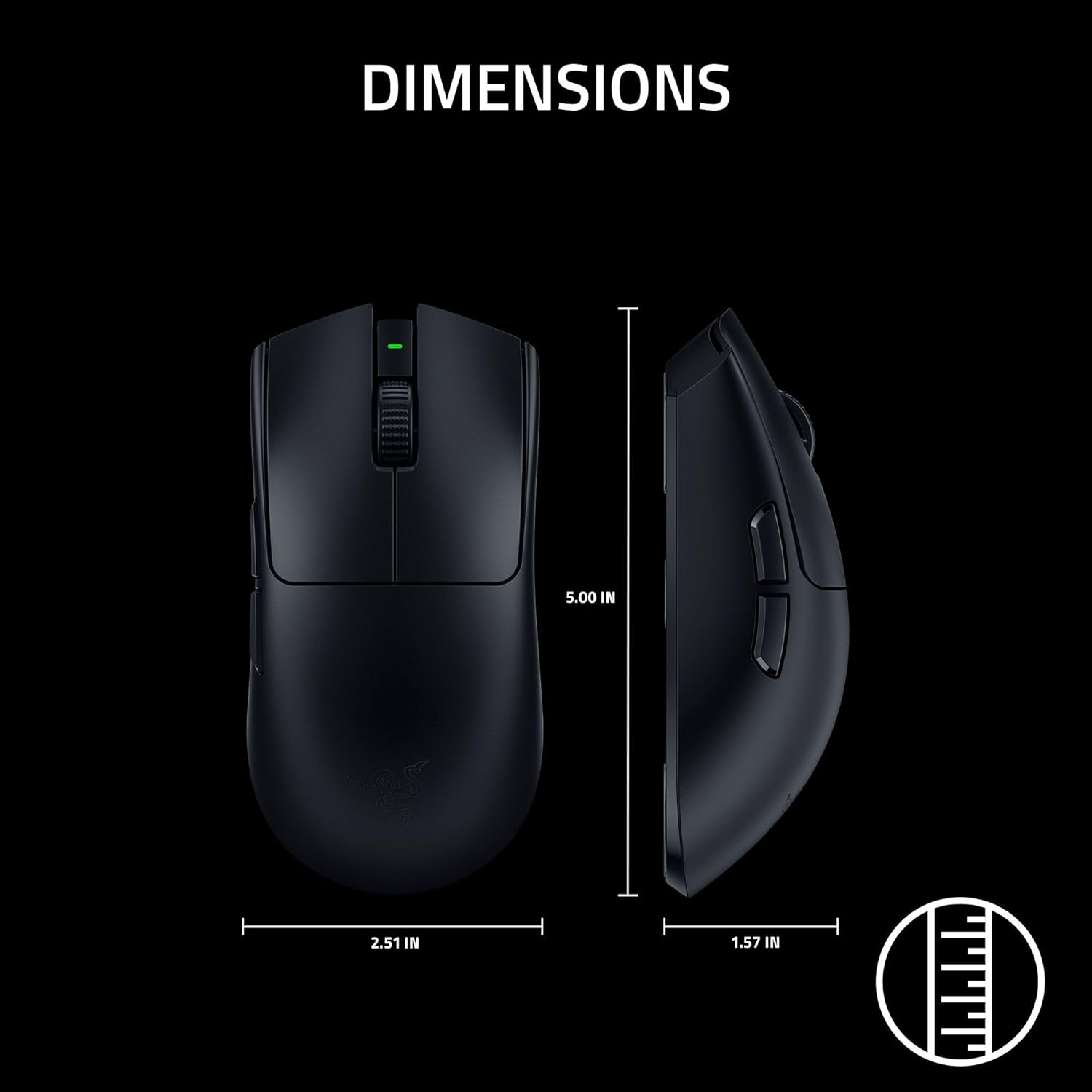

Image: A diagram illustrating the dimensions of the Razer Viper V3 Pro SE mouse.

7. Гаранција

The Razer Viper V3 Pro SE Wireless Gaming Mouse comes with a 2-годишња гаранција произвођача. Please retain your proof of purchase for warranty claims. For detailed warranty terms and conditions, refer to the Important Product Information Guide included in your package or visit the official Razer webсајту.

8. Подршка

For further assistance, technical support, or to download the latest version of Razer Synapse software, please visit the official Razer Support webсајт: www.razer.com/support.

You can also find additional resources and FAQs on the Razer community forums.
