LG 55TR3DQ-B CreateBoard Collaboration Display User Manual

Увод

This manual provides essential information for the safe and efficient operation of your LG 55TR3DQ-B CreateBoard Collaboration Display. Please read this manual thoroughly before using the product and retain it for future reference.

The LG CreateBoard is designed for interactive collaboration and educational environments, featuring advanced touch technology and smart functionalities.

Важна безбедносна упутства

• Always ensure the power cord is securely connected and not damaged.
• Do not expose the display to rain or moisture to prevent fire or electric shock.
• Не отварајте дисплеј casinг. Сва сервисирања препустите квалификованом сервисном особљу.
• Оставите вентилационе отворе слободним да спречите прегревање.
• Користите само додатке/прибор које је навео произвођач.

Водич за подешавање

1. Распакивање и преглед

Carefully remove the display from its packaging. Inspect for any signs of damage during transit. Ensure all components listed in the packing list are present.

Image: The LG 55TR3DQ-B CreateBoard display, shown partially removed from its protective packaging, illustrating the initial unpacking stage.

2. Монтирање дисплеја

The LG 55TR3DQ-B can be wall-mounted or placed on a compatible stand (sold separately). Follow the instructions provided with your mounting hardware for secure installation.

• Ensure the mounting surface can support the weight of the display.
• Use appropriate screws and anchors for your wall type.
• Maintain adequate clearance around the display for ventilation.

Image: A conceptual rear view of the LG 55TR3DQ-B CreateBoard, highlighting the VESA mounting points for wall or stand installation.

3. Повезивање периферних уређаја

Connect necessary devices to the display's input ports. The display features multiple connectivity options:

• ДВИ: 3 ports for high-definition video and audio.
• ДисплаиПорт (ДП): За видео улаз високе резолуције.
• РГБ (ВГА): For analog video input.
• УСБ типа Ц: 2 ports for video, data, and power delivery.
• УСБ 3.0 тип-А: 5 ports for connecting USB devices.
• УСБ 2.0 тип-А: Additional USB ports.
• РЈ45 (ЛАН): За мрежну повезаност.
• Аудио улаз/излаз: За екстерне аудио уређаје.
• РС-232Ц: За интеграцију система управљања.

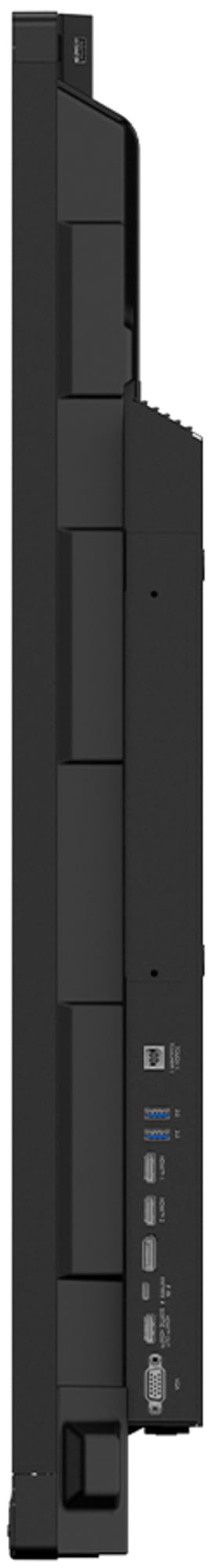

Слика: Детаљна view of the input and output ports on the LG 55TR3DQ-B CreateBoard, including HDMI, USB, and LAN connections.

4. Укључите напајање

Connect the power cord to the display and a grounded electrical outlet. Press the power button on the display or the remote control to turn it on.

Упутство за употребу

1. Initial Setup and Android OS

Upon first power-on, follow the on-screen prompts to configure basic settings such as language, network connection, and time zone. The display runs on Android 14 (EDLA).

2. Interactive Touchscreen Features

The LG CreateBoard supports up to 50 multi-touch points, allowing for intuitive interaction. Use your fingers or a compatible stylus to:

• Додирните: Изаберите ставке или отворите апликације.
• Превлачење: Move objects or scroll through content.
• Стисните/Раширите: Zoom in or out on images and documents.
• ротирати: Adjust the orientation of objects.
• Write/Draw: Utilize the digital whiteboard functionality.

Image: A user demonstrating multi-touch gestures on the LG 55TR3DQ-B CreateBoard, such as pinching to zoom.

3. Wireless Screen Sharing

The display supports wireless screen sharing for seamless collaboration. Refer to the on-screen instructions or the dedicated screen sharing application for connecting your devices.

4. Whiteboard Solution and Templates

Access the built-in whiteboard application for creative projects and presentations. It includes various educational templates, tools like rulers, tables, and sticky notes.

• Уштеда: Save your whiteboard sessions to internal storage or cloud platforms (Google Drive, OneDrive).
• Увоз/извоз: Easily import existing files or export your work via email or QR code to personal devices.

5. Карактеристике вештачке интелигенције

The LG CreateBoard integrates AI-powered features to enhance user experience and productivity. These features are accessible through the display's interface and applications.

Одржавање

1. Чишћење екрана

Да бисте очистили екран, нежно га обришите меком крпом која не оставља влакна. За тврдокорне мрље, благо обришитеampОчистите крпу водом или благим, неабразивним средством за чишћење екрана. Не прскајте средство за чишћење директно на екран.

• Увек искључите напајање и искључите екран из струје пре чишћења.
• Avoid using harsh chemicals, alcohol, or abrasive materials.

2. Ажурирања софтвера

Periodically check for software updates through the display's settings menu to ensure optimal performance and access to the latest features and security enhancements.

3. Складиштење

If storing the display for an extended period, ensure it is powered off, unplugged, and stored in a cool, dry environment, preferably in its original packaging.

Решавање проблема

If troubleshooting steps do not resolve the issue, please contact LG customer support.

Спецификације

Информације о гаранцији

LG Electronics provides a limited warranty for this product. The specific terms and duration of the warranty may vary by region and purchase date. Please refer to the warranty card included with your product or visit the official LG webза детаљне информације о гаранцији.

Доказ о куповини је неопходан за сва потраживања у вези са гаранцијом.

Корисничка подршка

For technical assistance, service inquiries, or to purchase accessories, please contact LG Customer Support:

• Webсајт: ввв.лг.цом/ус/суппорт
• Телефон: Refer to your regional LG support contact information.

When contacting support, please have your model number (55TR3DQ-B) and serial number ready.
